Description
Specifications
- Standard compliance: IEC/EN 60947-5-1
- Rated control supply voltage (Us):
- AC 220V / 50Hz or 60Hz
- AC 380V / 50Hz or 60Hz
- Allowable voltage fluctuation range: 85% – 110% Us
- Operating modes: Manual ON, Manual OFF, Automatic switching
- Number of programmable groups: 16 groups
- Time control range: 1 minute – 168 hours
- Timing accuracy: ±2 seconds/day
- Contact configuration: 1 Normally Open (NO) contact
- Contact capacity:
- AC-15: 240V / 3A
- AC-12: 240V / 30A
- Thermal current (Ith): 30A
- Battery: AAA replaceable battery (retains program memory during power loss)
- Functions: Delayed sleep and automatic time calibration
- Electrical life: ≥ 10,000 operations
- Mechanical life: ≥ 100,000 operations
- Ambient temperature range: −5 °C to +40 °C
- Installation options:

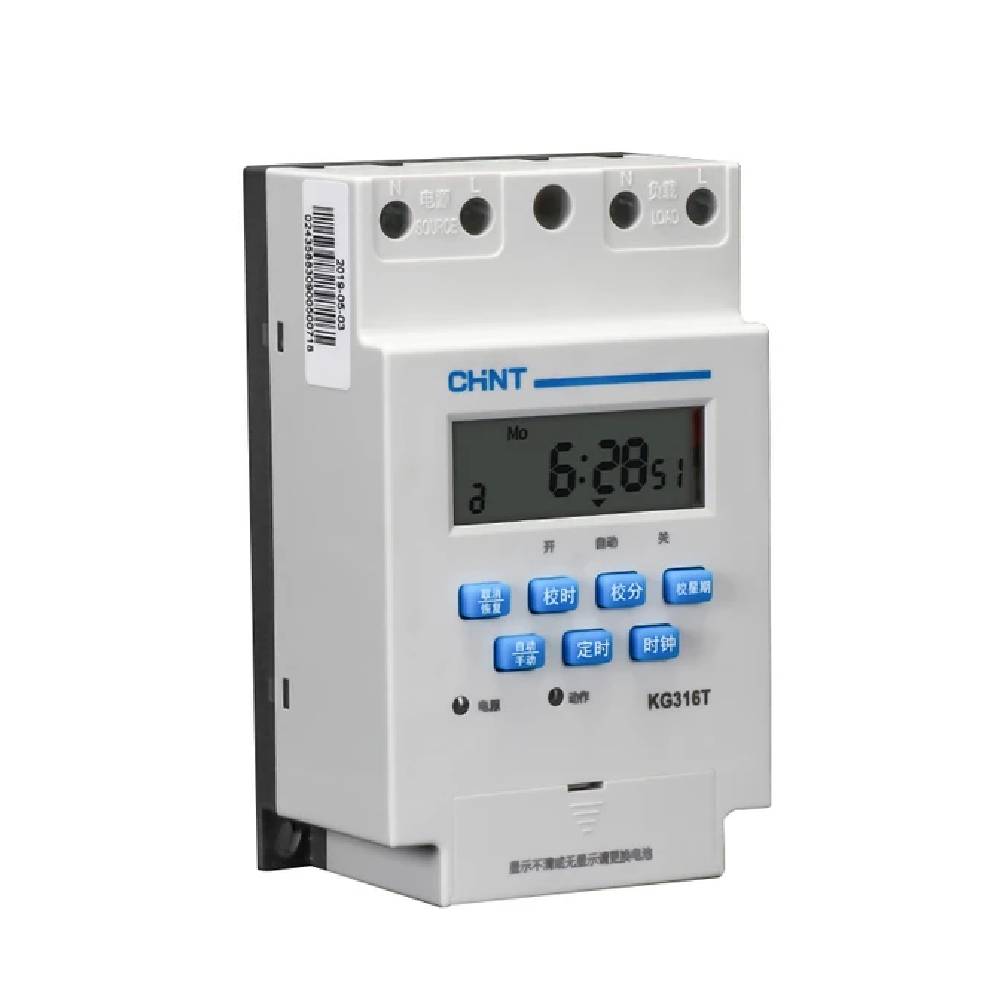

- KG316T: Wall/screw mounting
- KG316T-D: DIN-rail mounting
- Dimensions:
- KG316T: 125.5 mm × 95.1 mm × 63.4 mm
- KG316T-D: 121 mm × 74.5 mm × 63 mm
- Wiring modes:
- Direct control for low-power single-phase loads
- Single-phase expansion with contactor for higher loads
- Three-phase control via external AC contactor (220V or 380V coil)
- Applications: Suitable for lighting, pumps, signage, air conditioning, and machinery control.
