Description
Specifications
| Model Version | |
|---|---|

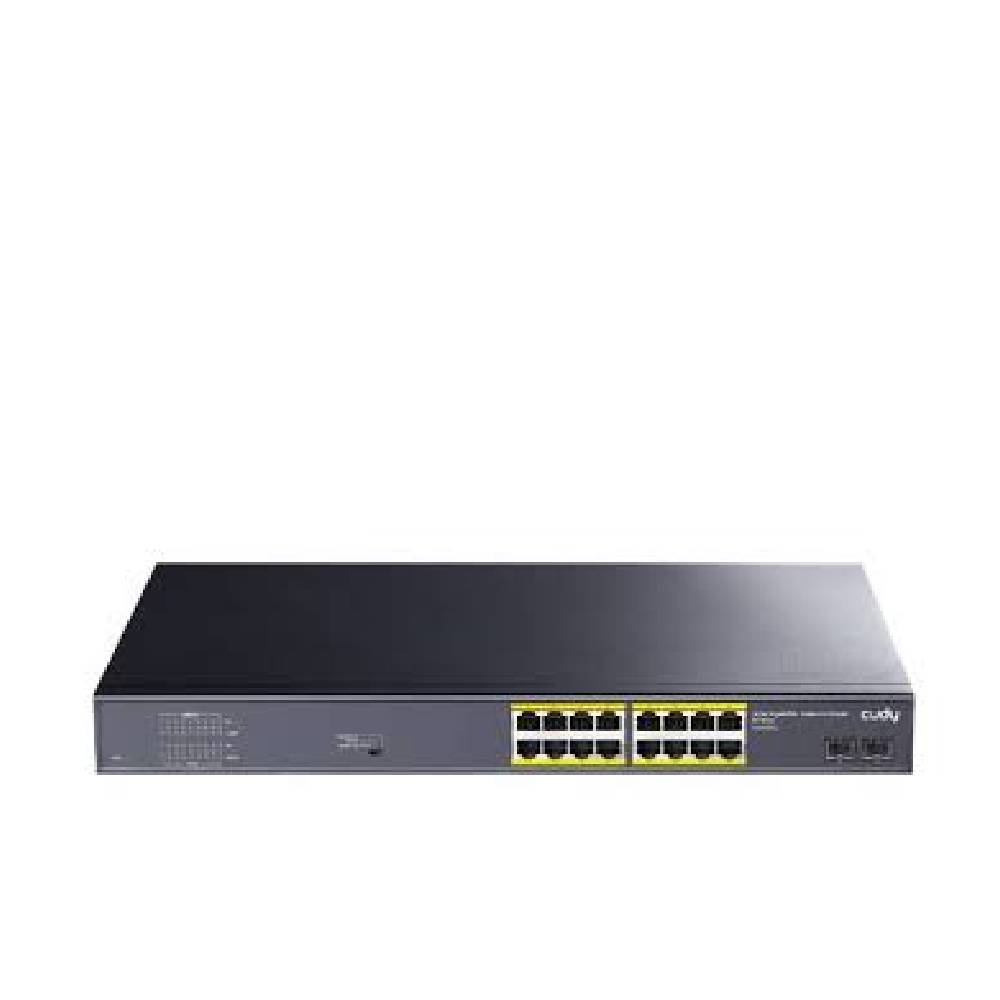

| GS1020PS2 | |
| Interfaces | |
| 1.25G SFP Slots | 2 |
| Gigabit RJ45 Ports | 16 |
| Gigabit RJ45 PoE Ports | #1~#16 |
| Max Power on a Single PoE Port | 30W |
| PoE Port Notes | The PoE ports comply with IEEE 802.3at/af standards. |
| PoE Priority | Intelligent Power Management: Automatically disconnect the lastly powered device when power exceeds budget. |
| Shielded RJ45 Port | True |
| Extend Mode Ports | #9~#16 |
| VLAN Mode Ports | #1~#16 |
| LED |
|
| Power Input | AC Inlet |
| Physical Buttons |
|
| Physical Buttons Note | The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature. |
| Performance | |
| Copper Speed and Distance |
|
| Copper Speed and Distance Note | 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. |
| Optical Spec and Distance | Depends on the Installed Optical Module |
| MAC Address Table | 8192 |
| Max Switching Capacity | 36 Gbps |
| Max Forwarding Rate | 26.78 Mpps |
| Jumbo Frame | 15 KB |
| Packet Buffer | 4 Mbit |
| Power | |
| Power Methods | AC |
| AC | 100-240V~, 50/60Hz |
| Power Supply | 200W |
| Max Power Excluding PoE | 14W |
| Switching | |
| 802.3 Protocols |
|
| PoE Management | Intelligent Power Management |
| L2 Features |
|
| Reliability | |
| Grounding Methods | Three-Prong Plug |
| EMS | IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV |
| Environment | Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing |
| Mechanical | |
| Dimension | 440×220×44 mm 17.32×8.66×1.73 inches |
| Product Weight | 2773.5 g (97.83 oz.) |
| Casing Material | Metal |
| Installation |
|
