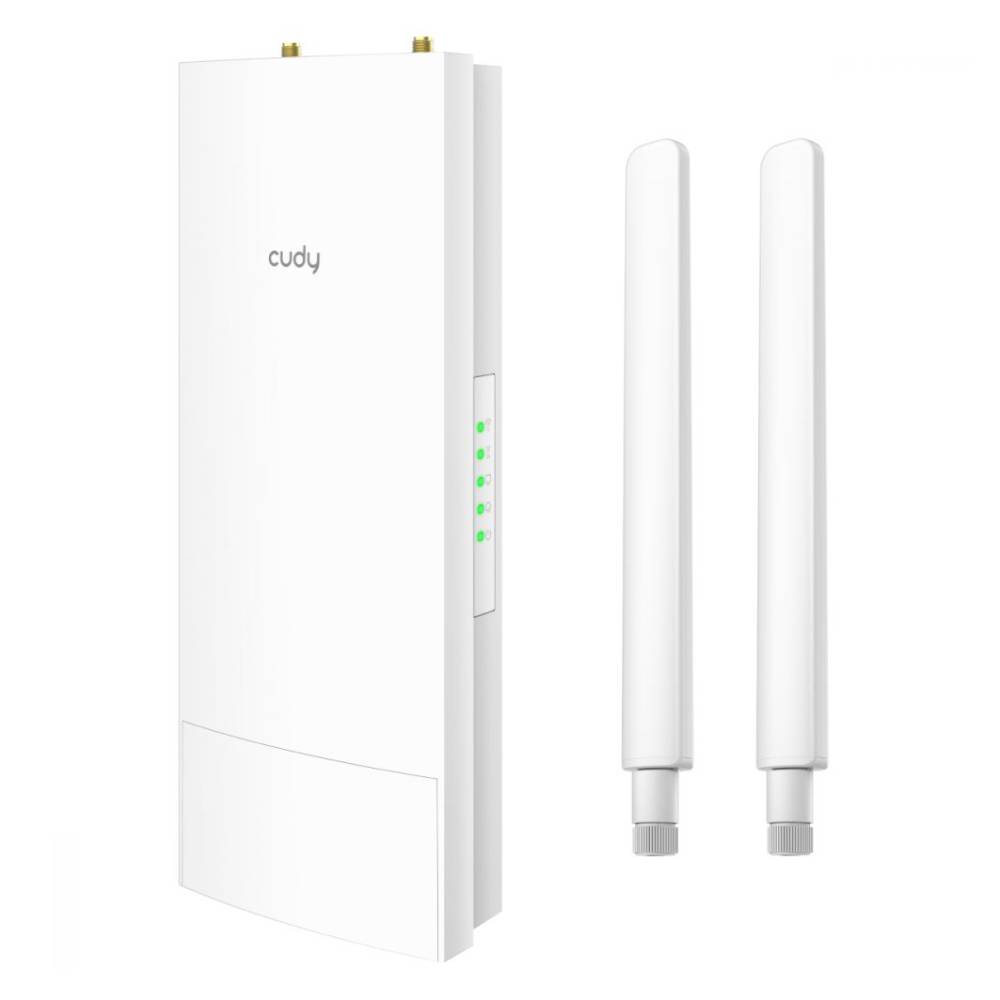

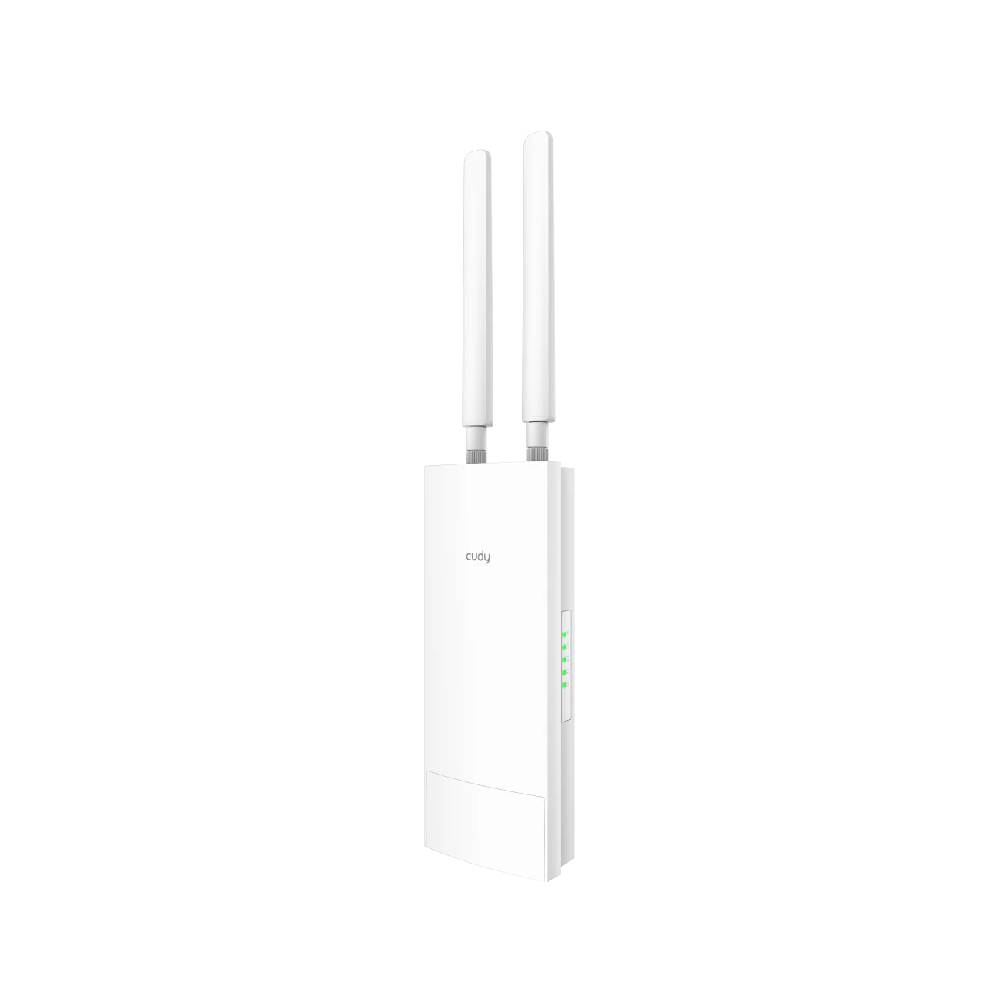

Cudy outdoor AC1200 Wireless Range Extender

https://live-linkserve.odoo.com/web/image/product.template/61817/image_1920?unique=f5c58fb
(0 review)

1,105.00 MVR 1105.0 MVR 1,105.00 MVR GST Included

1,023.15 MVR GST Included

Not Available For Sale

    This combination does not exist.

    ADD TO CART ADD TO QUOTE
    BUY NOW
    Contact Us

    Terms and Conditions

    Description

    Specifications

    Model VersionRE1200 Outdoor 1.0
    CPUCPU Details580 MHZ Single-Core, MIPS24KEC
    Memory/StorageFlash/ROM8 MB (64 Mbit ) NOR
    DDR/RAM64 MB (512 Mbit) DDR2
    Wireless5 GHz Wi-Fi Speed867 Mbps
    2.4 GHz Wi-Fi Speed300 Mbps
    5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    Wi-Fi Antennas2× Detachable
    FEM or PA/LNA
    • 5 GHz: 2× Internal
    • 2.4 GHz: 2× Internal
    Detachable Wi-Fi Antennas ConnectorRP-SMA Female
    Range PerformanceMax: 170 m (558 ft)
    Park: 150 m (492 ft)
    Street: 50 m (164 ft)
    Woods: 30 m (98 ft)
    Wall PerformanceNA
    Interfaces10/100 Mbps RJ45 Ports1
    Ethernet NotesAccepts PoE powering
    LED
    • Power
    • Internet
    • LAN
    • 2.4 GHz Wi-Fi
    • 5 GHz Wi-Fi
    Physical Buttons
    • WPS Button
    • Reset Button
    Power InputPoE via Ethernet Port
    PowerPower MethodsPassive PoE
    Passive PoE Input24 V
    AC110V ~ 220V
    Max Power Consumption (W)12W
    Idle Power Consumption (W)2.5W
    ReliabilityEnvironmentOperating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
    Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
    Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    Operating Humidity: 0% ~ 100% non-condensing
    Storage Humidity: 5% ~ 90% non-condensing
    EMCESD: Contact: 4kV; Air: 8kV
    IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
    CertificationsFCC, CE
    MechanicalInstall in a Daisy ChainRecommend to install less than 3 repeaters in a wireless chain.
    Installation
    • Wall-mount
    • Pole-mount
    DimensionDevice Body:
    240×100×53.7 mm
    9.45×3.94×2.11 inches
    Each Antenna:
    197.5×21.6×15.5 mm
    7.78×0.85×0.61 inches
    Product Weight415 g (14.64 oz.)
    Package Content
    • RE1200 Outdoor
    • Detachable Antennas
    • PoE Adapter
    • Power Cord
    • Mounting Kit
    • Ethernet Cable
    • Installation Guide
    Ordering InformationRetail Package WeightEU: 763 g (26.91 oz.),US: 749 g (26.42 oz.)
    Retail Package Dimension324×107×86 mm
    12.76×4.21×3.39 inches
    Units per Carton20
    Carton Net WeightEU: 15.3 kg (33.73 lbs),US: 15.0 kg (33.07 lbs)
    Carton Gross WeightEU: 16.2 kg (35.71 lbs),US: 16.0 kg (35.27 lbs)
    Carton Dimension46×33.7×45 cm
    18.11×13.27×17.72 inches
