Description
Specifications
Model: IL DK 3020 G (3 pole) / IL DK 4020 G (4 pole)
- Rated current: 20A
- Rated operational voltage: Ue=690 V AC
- Rated operational power: 15kW, AC-23A, 440V AC
- Switching: Switch with padlocking device to prevent unauthorized personnel switched ON
- Locking: Max 3 Padlocks
- Solid or rigid strand wire: 1.0 mm2 to 1.5 mm2
- Fine-strand wire with sleeve: 0.5 mm2 to 4 mm2
- Terminal tightening torque: 0.8 Nm
- Material of enclosure: PP (polypropylene)
- Cable Entry: With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-21.0 mm
- Lid: Lid fasteners sealable without accessories
- Included: Retaining strap and external brackets for wall fixing included
Model: IL DK 3025 G (3 pole) / IL DK 4025 G (4 pole)
- Rated current: 25A
- Rated operational voltage: Ue=690 V AC
- Rated operational power: 22kW, AC-23A, 440V AC
- Switching: Switch with padlocking device to prevent unauthorized personnel switched ON
- Locking: Max 3 Padlocks
- Solid or rigid strand wire: 2.5 mm2 to 10 mm2
- Fine-strand wire with sleeve: 0.75 mm2 to 6 mm2
- Terminal tightening torque: 1.7 Nm
- Material of enclosure: PP (polypropylene)
- Cable Entry: With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-21.0 mm
- Lid: Lid fasteners sealable without accessories
- Included: Retaining strap and external brackets for wall fixing included

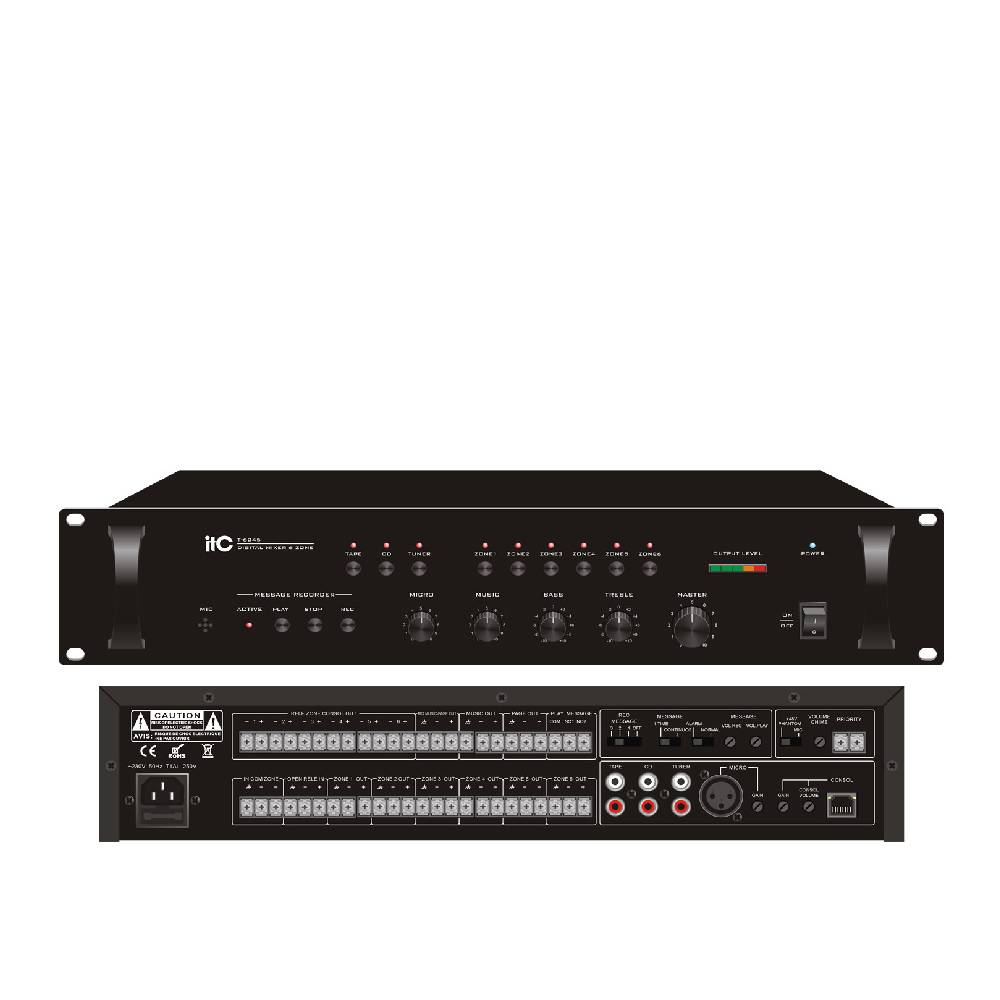

Audio System Specifications: Model T-6245
| Category | Specification | Value |
| CONSOLE INPUT | Sensitivity | ±5 mV/600Ω,±500mV/10kΩ |
| S/N Ratio | >68dB | |
| Frequency Response | 50Hz∼17KHz(+1,−3dB) | |
| MICROPHONE INPUT | Sensitivity | ±5 mV/600Ω,±500mV/10kΩ |
| S/N Ratio | >68dB | |
| Frequency Response | 50Hz∼17KHz(−3dB) | |
| Phantom Power | +48V | |
| 3 AUXILIARY INPUTS | Tuner and Tape Sensitivity | 200mV/47Ω |
| CD Input Sensitivity | 500mV/47Ω | |
| S/N Ratio | >90dB | |
| Frequency Response | 20Hz∼20KHz(+1,−3dB) | |
| CONTROL | Bass | ±12dB at 100Hz |
| Treble | ±12dB at 10KHz | |
| Chime | 2 tone active for contact free in priority and BGM | |
| Normal Distortion | >0.05% | |
| OPERATING | Power Supply | ∼110V/60Hz or ∼230V/50Hz & DC 24V |
