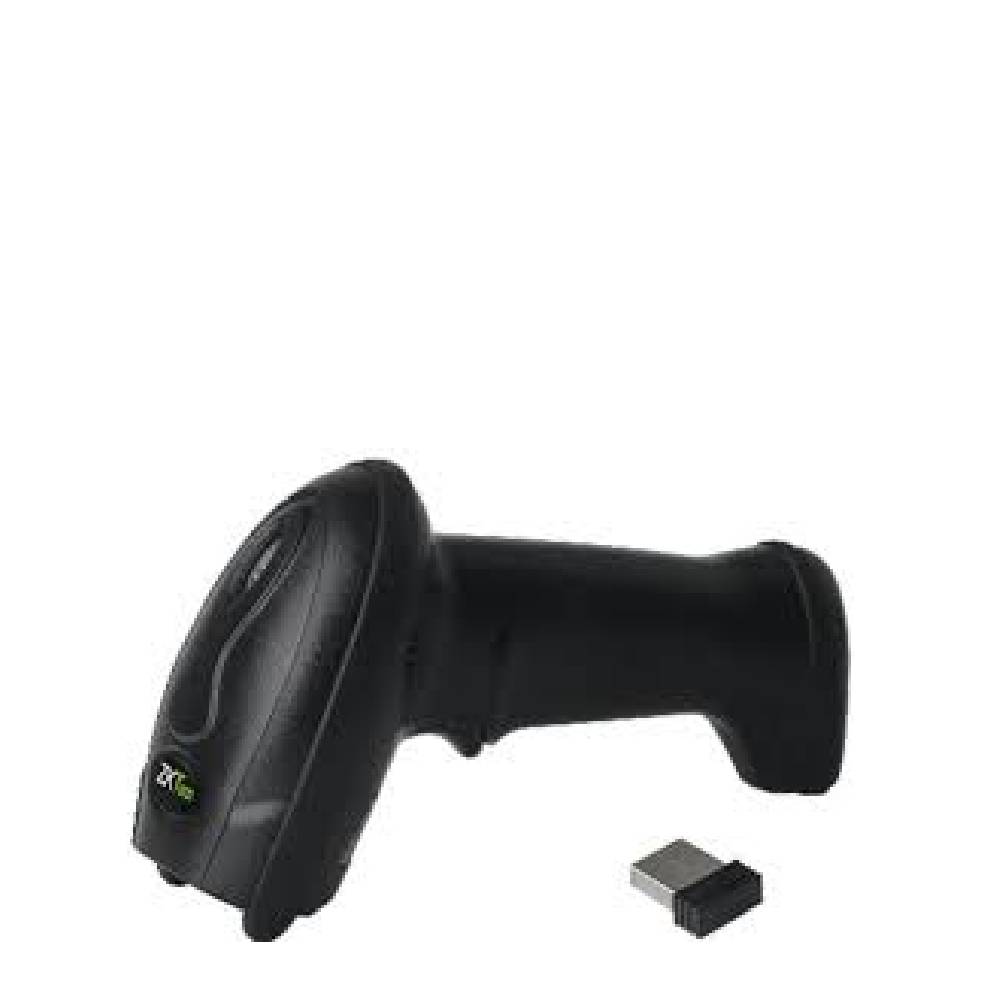

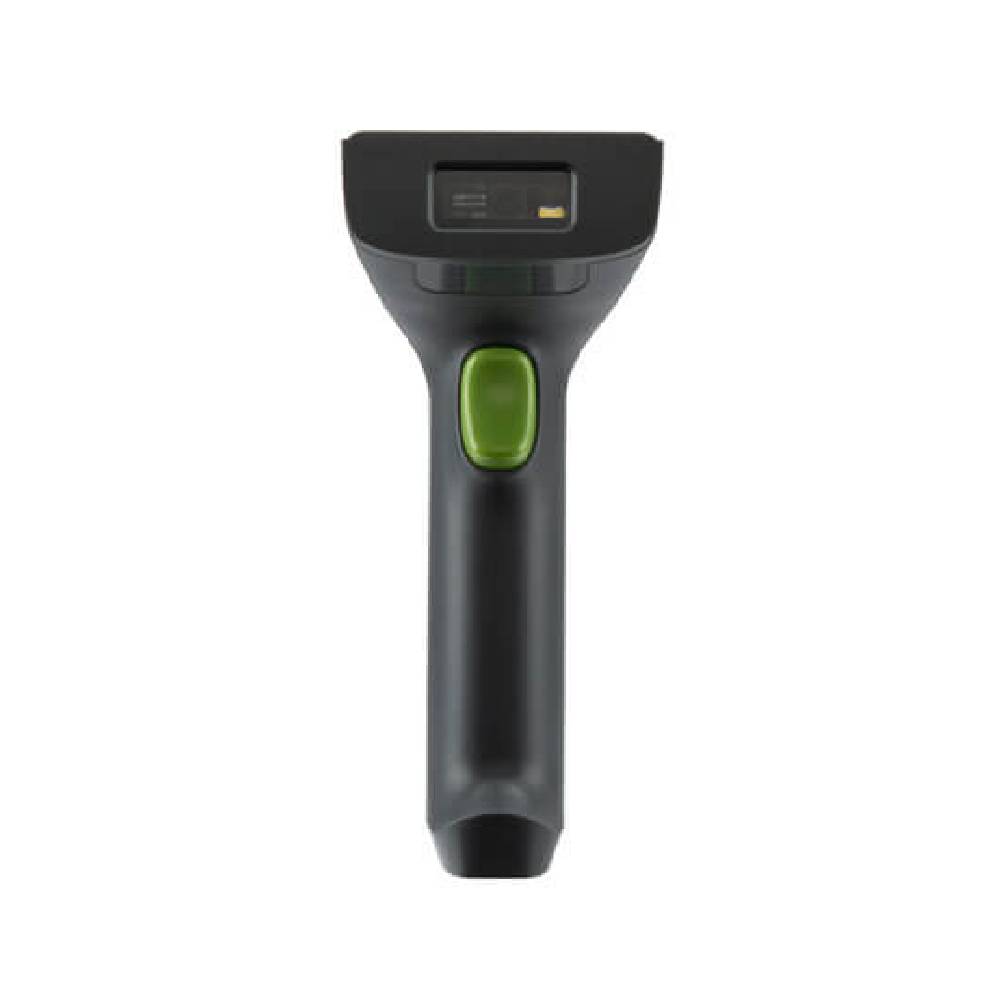

ZKTECO Wireless Handheld 2D Barcode Scanner with USB Dongle

Specifications

Product information

• Dimensions (L*W*H)

  167.3*70.5*81.5 (mm)

• Weight

  170g

• Voltage & Current

  5 VDC Operating: 190mA (Standby: 60mA)

• Color

  Black and Gray (White, optional)

• Support Host Interface

  2.4GHz (2.4GHz+Bluetooth, optional)

• User Indicators

  Decode LED Indicator; Beeper (adjustable tone and volume)

• PERFORMANCE PARAMETERS




• Scan Mode

  Manual Reading Mode

• Light Source

  Aiming Pattern: 650nm true red LED

• Illumination

  White LED

• Scan Speed

  10cm/second

• Field of View

  Horizontal: 41°; Vertical: 31°

• Image Sensor

  640*480 pixels

• Minimum Print Contrast

  25%

• Roll Tolerance

  0°-360°

• Pitch Tolerance

  ±60°

• Skew Tolerance

  ±55°

• Minimum Element Resolution

  Code 39: 4mil; Code 128: 4 mil; Data Matrix: 6 mil; QR Code: 6.7mil

• Decode Capability

  1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7)
  2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin
  Code, etc.

• WIRELESS CONNECTIVITY




• Radio Range

  2.4GHz: 60m (Bluetooth: 15m)

• Wireless Communication Mode

  Synchronous Mode; Storage Mode

• Battery Type

  18650 Li-ion Battery

• Battery Capacity

  2000 mAh

• Operating Time Per Full Charge

  ≥12 Hours

• Standby Time Per Full Charge

  ≥4 Weeks

• Charge Time(from Empty)/Standard USB

  5 Hours

• ENVIRONMENTAL PARAMETERS




• Operating Temperature

  -20°C to 50°C

• Storage Temperature

  -40°C to 70°C

• Humidity

  5% to 95% relative humidity, non-condensing

• Electrostatic Discharge (ESD)

  ±2KV Direct; ±8KV Air

• Ambient Light Immunity

  10000 lux Max

• DECODE RANGES




• Symbology / Resolution

  Near/Far

• Code 39: 4 mil

  4 cm to 10 cm

• Code 39: 5 mil

  4 cm to 13 cm

• Code 39: 13 mil

  4 cm to 25 cm

• Code 39: 20 mil

  6 cm to 30 cm

• EAN-13: 13 mil

  3 cm to 25 cm

• UPC-A: 13 mil

  3 cm to 25 cm

• QR Code: 20mil

  5 cm to 20 cm

• PDF417: 13mil

  5 cm to 20 cm
