Description
Specifications
| Specifications | |
|---|---|
| Model | CS-E6-A0-8C5WF |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, viewing angle: 87° (Horizontal), 48° (Vertical), 103° (Diagonal) |
| PT Angle | Pan: 350°, Tilt: 75° |
| Minimum Illumination | 0.51 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | WDR 80dB |
| BLC | Supports |
| Night Vision | Up to 10 m / 32.8 ft |
| Video & Audio | |
| Max. Resolution | 2880 × 1620 |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4G: 2400~2483.5 MHz 5G: 5170~5250 MHz，5735~5835 MHz |
| Channel Bandwidth | Supports 40 MHz |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7; 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7 |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection / Pet Detection / Gesture Recognition / Voice Activity Detection / Bark and Meow Detection |
| Two-Way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| General | |
| Operating Conditions | -10°C to 45°C ( 14°F to 113 °F ), humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/2A |
| Power Consumption | Max. 8W |

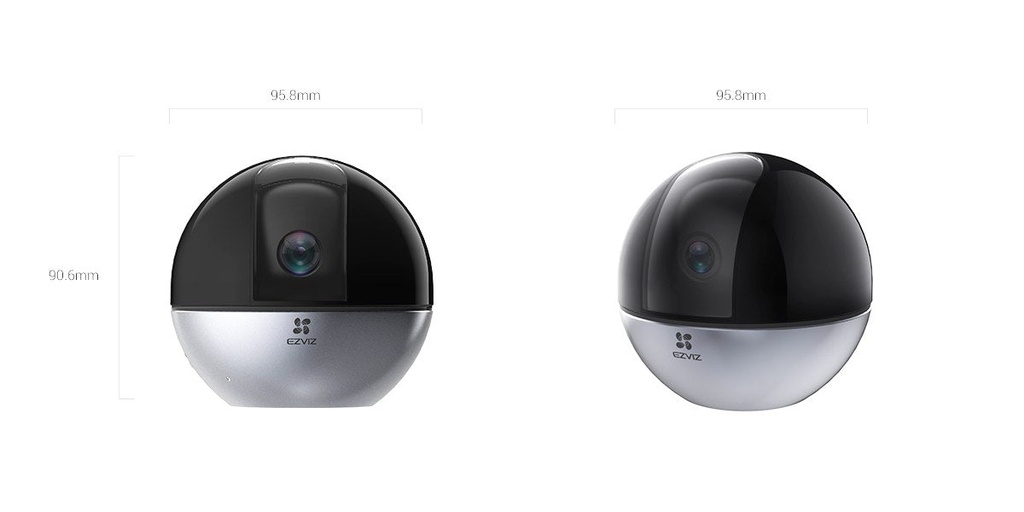

| Dimensions | 95.8 × 95.8 × 90.6 mm (3.77 × 3.77 × 3.57 inch) |
| Packaging Dimensions | 116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch) |
| Weight | Net weight: 252 g (8.89 oz) With package: 513 g (1.13 oz) |
