Specifications
| Specification | Details |
|---|

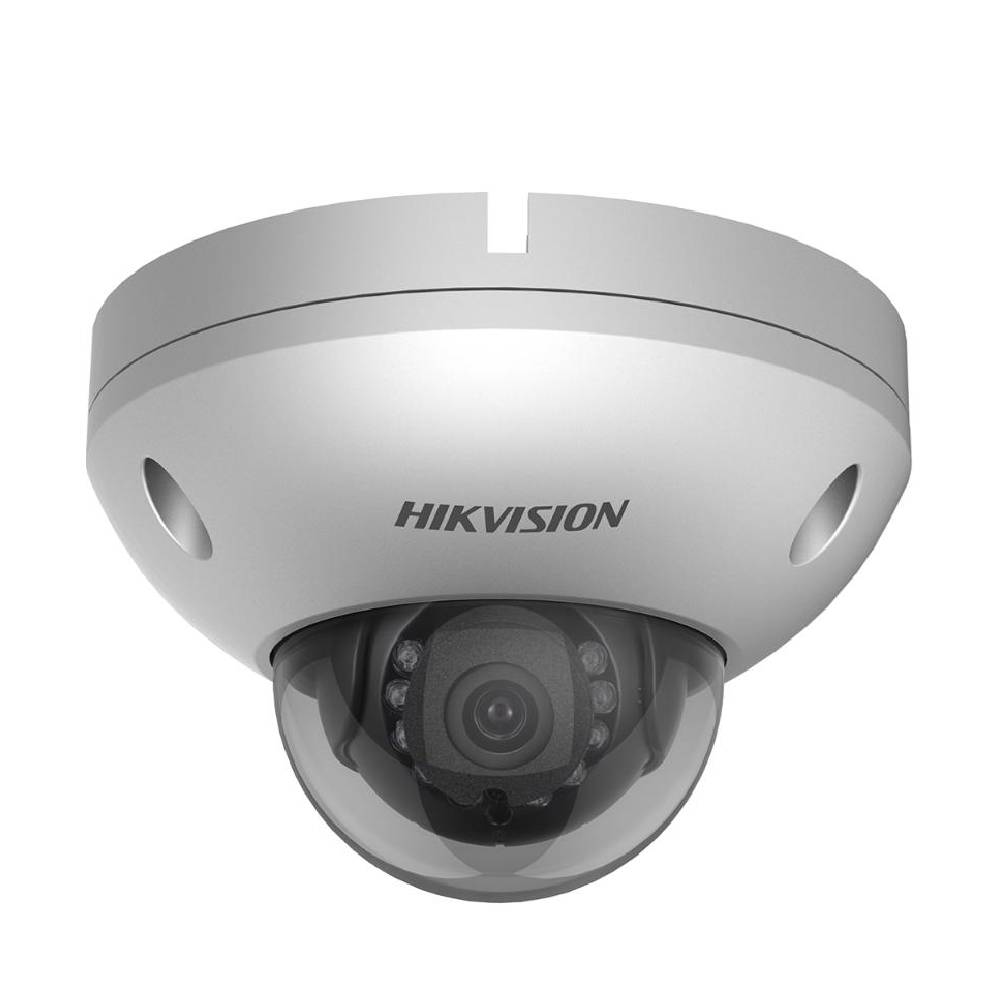

| Model | DS‑2XC6142FWD‑IS (2.8 mm) |
| Product Type | Anti‑Corrosion Network Dome Camera |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 (4 MP) |
| Minimum Illumination | Color: 0.009 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: −30° to 30°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 mm |
| Field of View (FOV) | Horizontal: 98.5°; Vertical: 52.8°; Diagonal: 116.2° |
| Lens Mount | M12 |
| Aperture | F1.6 |
| DORI (2.8 mm) | Detect: 54.6 m; Observe: 21.7 m; Recognize: 10.9 m; Identify: 5.5 m |
| Illuminator Type | IR |
| IR Range | Up to 15 m |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Main Stream | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720); 60 Hz: 30 fps (same) |
| Sub‑Stream | 50 Hz: 25 fps (640×480, 640×360); 60 Hz: 30 fps (640×480, 640×360) |
| Third Stream | 1 fps (various resolutions) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Defog |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable |
| Ethernet Interface | 1 × RJ45 10/100 Mbps |
| On‑Board Storage | microSD/SDHC/SDXC up to 128 GB (optional) |
| Alarm Input | 1 input |
| Alarm Output | 1 output |
| Smart Events | Motion detection, tampering alarm, scene change, line crossing, intrusion, region entrance/exiting |
| Power Supply | 12 VDC, 0.4 A, max. 5 W; PoE 802.3af Class 3 |
| Material | 316L stainless steel with anti‑corrosion coating |
| Protection Rating | IP67, Anti‑Corrosion (NEMA 4X, WF‑2, C5‑M) |
| Operating Temperature | −30 °C to +60 °C |
| Operating Humidity | ≤ 95% non‑condensing |
| Dimensions | Ø113 mm × 77.3 mm |
| Approx. Weight | ~1500 g |
| Supported Languages | Multiple international languages |
| General Functions | Heartbeat, password protection, privacy mask, watermark, IP address filter |
