Specifications
| Specifications | |
|---|---|

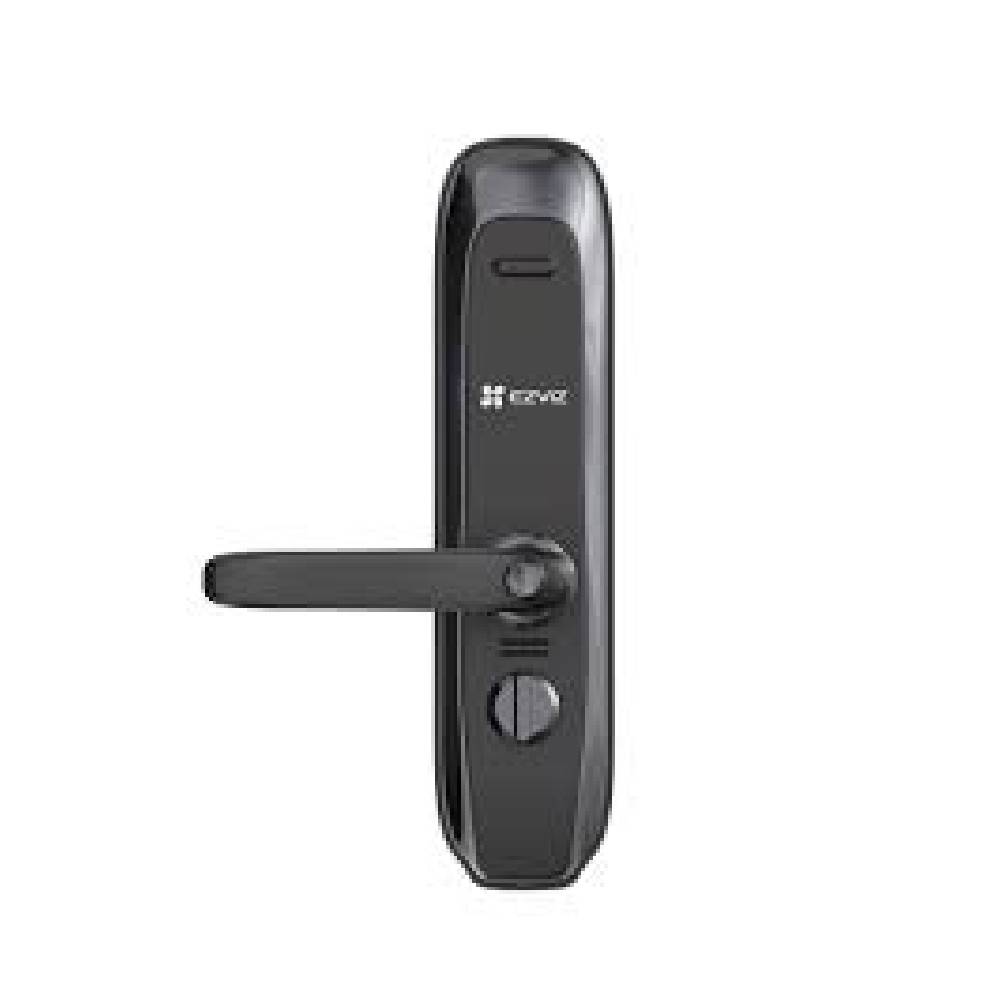

| Model | CS-L2S-11FCP |
| Design & Materials | |
| Panel size | 307 × 74 × 32 mm (12.09 × 2.91 × 1.26 inch) |
| Panel material | Aluminum alloy |
| Lock body type | Mechanical lock body |
| Fingerprint sensor | Semiconductor |
| Built-in doorbell | Supports |
| Installation | |
| Operating temperature | -25 °C to 70 °C |
| Operation humidity | Humidity 95% or less (non-condensing) |
| Door compatibility | Supports using with wooden and iron doors |
| Lock face plate (installed on the door) | Standard 240 × 24 mm,double-holes, rectangular angle |
| Lock strike plate (installed on the door frame) | For a wooden door: standard 30 × 218 mm For an iron door: standard 30 × 260 mm |
| Supported door thickness | Use with doors that are 40 to 110 mm thick (standard wooden door of 40 to 55 mm; standard iron door of 55 to 75 mm) |
| Access Solution | |
| Door handle direction | Supports handle setup to be right-handed or left-handed |
| Fingerprints | Up to 50 fingerprints |
| Passwords | Up to 50 sets of passwords; supports anti-peeping virtual passwords; supports creating temporary passcodes via EZVIZ App |
| Proximity cards | Up to 50 EZVIZ door cards, with a recommended reading distance of 0 to 10 mm |
| Mechanical keys | Supports mechanical keys for emergency unlocking |
| Safety Specs | |
| Cylinder | C grade lock cylinder |
| Indoor lock | Supports |
| Handle safety lock | Supports |
| Anti-tamper alarm | Supports |
| Failed attempts auto-lock | Auto-disable for 3 minutes after 5 failed unlocking attempts |
| Power Specs | |
| Working power | Uses four 1.5V AA alkaline batteries |
| Time of use | Up to 1 year based on the usage of 10 openings per day |
| Low battery alarm | Supports |
| Emergency power supply | Micro-USB power bank |
| Connectivity & App Management | |
| Communication method | Zigbee 3.0 |
| User access management | Supports |
| Temporary password | Supports |
| Privacy mode | Supports |
| Real-time mobile alerts | Supports |
| Door status time log | Supports |
| In the box | |
| In the box | - L2S Smart Fingerprint Lock (Front Panel + Rear Panel) |
| - Lock Body | |
| - Gateway | |
| - AA Alkaline Batteries (4) | |
| - Proximity Cards (2) | |
| - Mechanical Keys (2) | |
| - Square Rod | |
| - Drilling Template | |
| - Standard Screw Kit | |
| - Lock Body Screw Kit | |
| - Quick Start Guide | |
