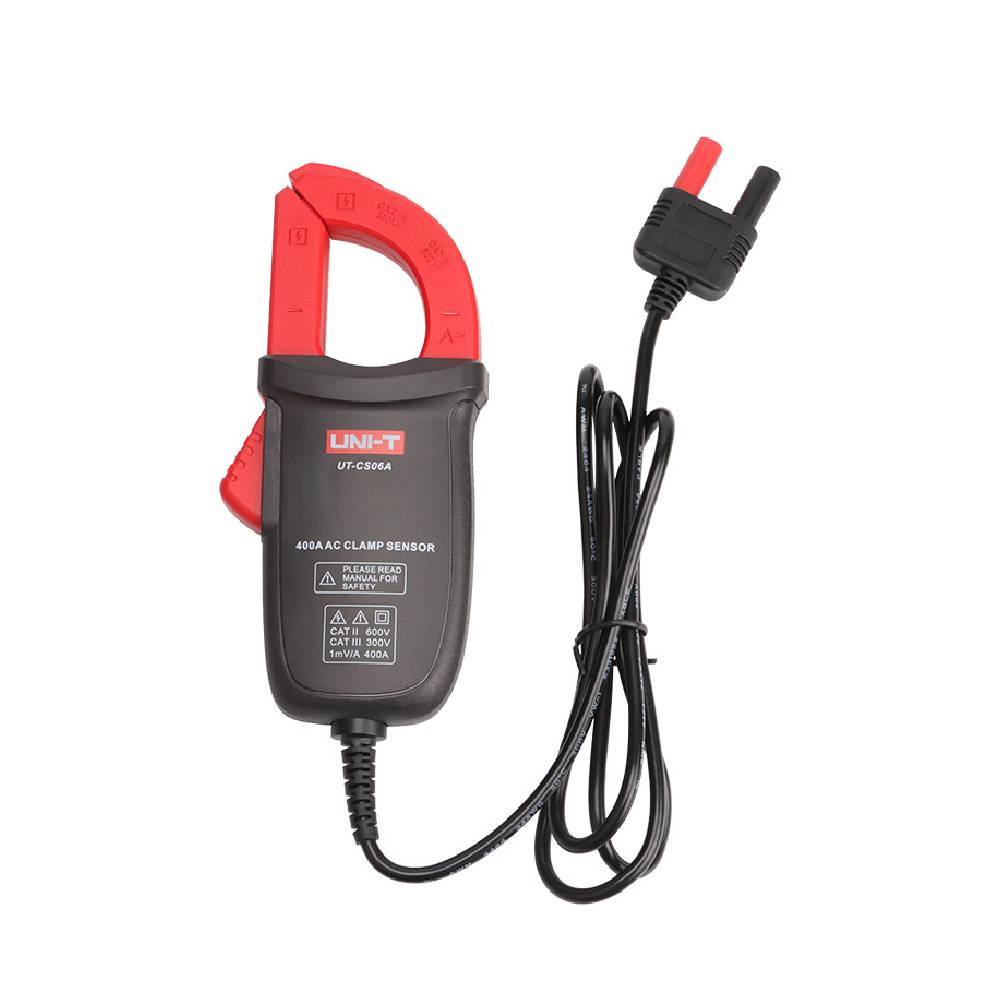

Specifications of UT-CS06A 400A AC Current Clamp Sensor
Specifications
| Technical Specifications | UT-CS06A |
| Dimension | 158*65*33mm |
| ACA Current | 1-400A |
| Accuracy | ±2.5%±0.5A@50-60Hz ±2.8%±0.5A@60-400Hz |
| Jaw opening | 28mm |
| Output ratio | 1mV/A |
| Wire length | 1.1m |
| True RMS | Depends on the Multimeter |
| Response time | Depends on the Multimeter |
| Frequency | 50 Hz~400 Hz |
| Waveform display | Adaptable oscilloscope |
| Accuracy | Depends on the Multimeter |
| Power supply | No need battery |
| Drop test | 1m |
