Tech. Spec

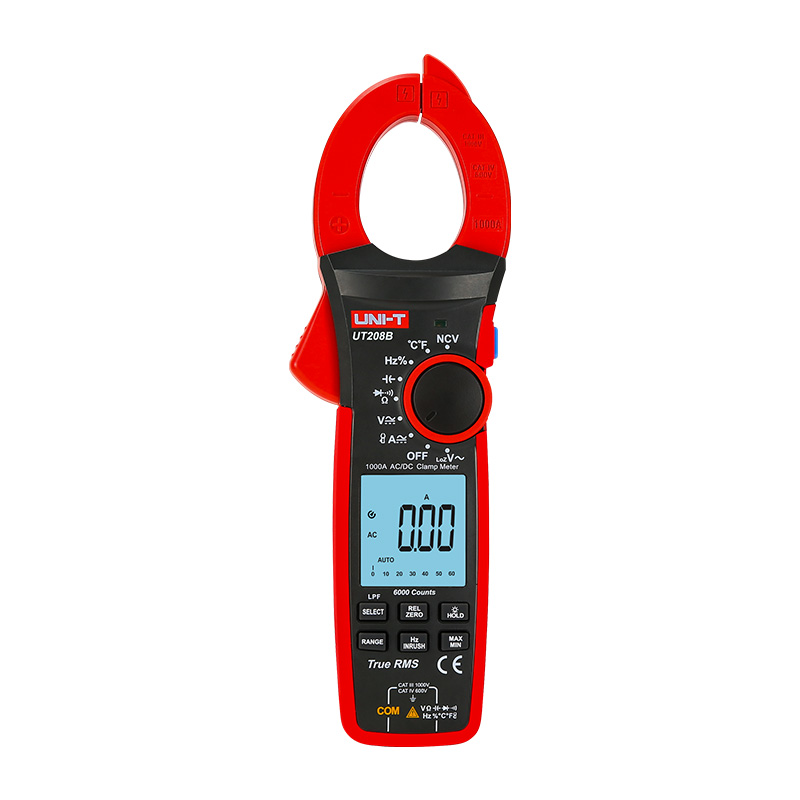

| Specifications | Range | UT208B |
| AC current (A) | 1000A | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) |
| AC current frequency response | 　 | 40Hz~400Hz |
| Inrush current (A) | 1000A | ±(10%+10) |
| AC voltage (V) | 6V | ±(1.2%+3) |
| 60V/600V/1000V | ±(1%+8) | |
| DC voltage (V) | 600mV | ±(0.8%+3) |
| 6V/60V | ±(0.5%+5) | |
| 600V | ±(0.5%+5) | |
| 1000V | ±(0.5%+5) | |
| Low pas ï¬lter (LPF ACV) | 600V/1000V | ±(2%+5) |
| AC voltage frequency response | 　 | 40Hz~400Hz |
| LoZ ACV | 600V/1000V | ±(2%+5) |
| Resistance (Ω) | 600Ω | ±(1%+3) |
| 6KΩ/60KΩ/600KΩ | ±(1%+2) | |
| 6MΩ/60MΩ | ±(2%+8) | |
| Capacitance (F) | 60nF | ±(4%+25) |
| 600nF/6μF/60μF/600μF | ±(4%+5) | |
| 6mF/60mF | ±(10%+9) | |
| Temperature (℃) | -40℃~300℃ | ±(1%+20) |
| 300℃~1000℃ | ±(1%+2) | |
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) |
| Features | ||
| Display count | 　 | 6000 |
| Jaw opening | 　 | 42mm |
| Current frequency | 　 | 50Hz~60Hz |
| High voltage frequency | 　 | 40Hz~400Hz |
| Analog bar | 　 | 31 |
| Auto power off | 　 | √ |
| Continuity test | 　 | √ |
| Auto/Manual range | 　 | √ |
| Low battery indication | 　 | √ |
| Diode test | 　 | √ |
| Relative mode/Data hold | 　 | √ |
| MAX/MIN | 　 | √ |
| Function selection | 　 | √ |
| Flashlight | 　 | √ |
| Wake-up function | 　 | √ |
| Auto power off current: ＜50μA | 　 | √ |
| Flexible current probe (optional) | Extends to 3000A | √ |
| Zero mode | 　 | √ |
| Input impedance (ACV/DCV) | ≥10MΩ | √ |
