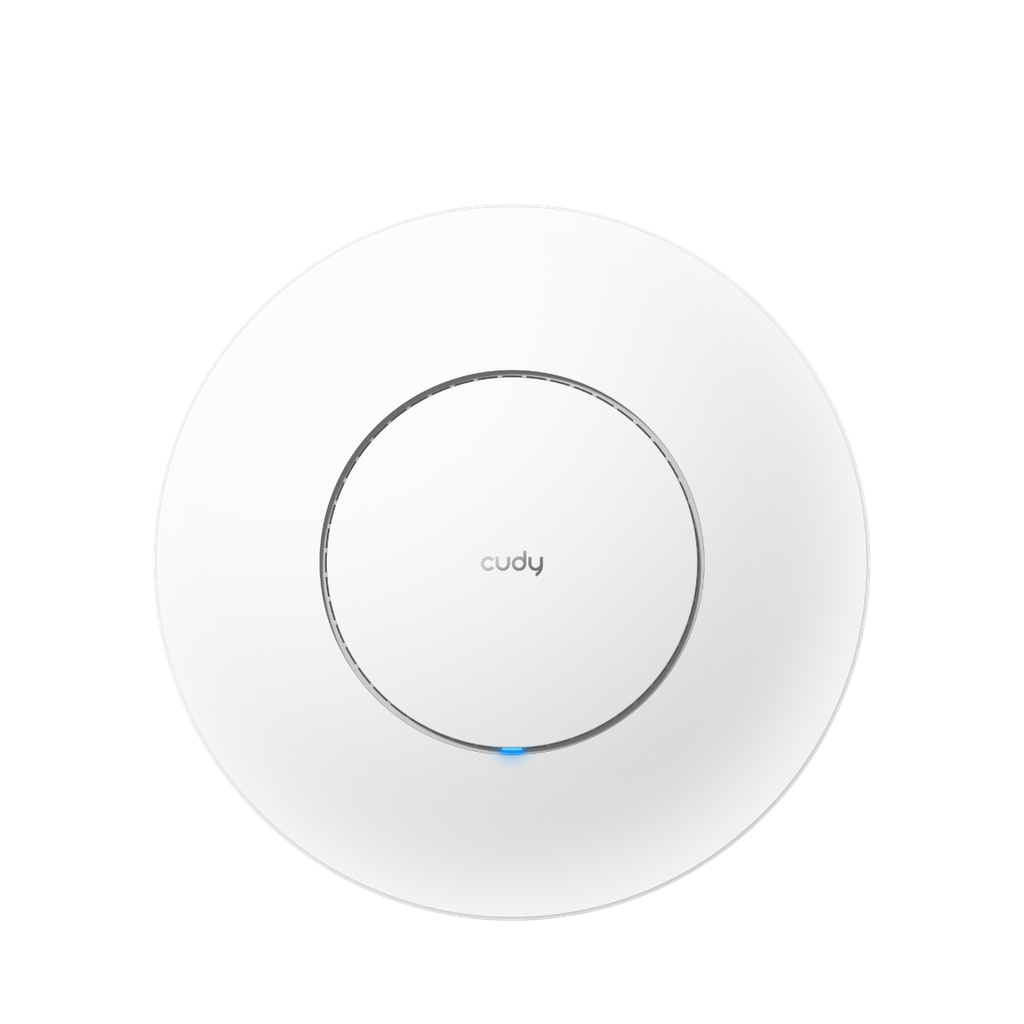

Cudy AX3000 2.5G WiFi 6 Wireless Access Point, 2.5Gbps

https://live-linkserve.odoo.com/web/image/product.template/61285/image_1920?unique=3a30e56
(0 review)

Cudy AX3000 2.5G WiFi 6 Wireless Access Point, 2.5Gbps

2,150.00 MVR 2150.0 MVR 2,150.00 MVR GST Included

1,990.74 MVR GST Included

Not Available For Sale

    This combination does not exist.

    ADD TO CART ADD TO QUOTE
    BUY NOW
    Contact Us

    Terms and Conditions

    Description

    Specifications

    Model VersionAP3000 1.0
    CPUCPU Details1.3 GHz Dual-Core CPU
    Memory/StorageFlash/ROM256 MB (2 Gbit) NAND
    DDR/RAM512 MB (4 Gbit) DDR4
    Wireless5 GHz Wi-Fi Speed2402Mbps
    2.4 GHz Wi-Fi Speed574 Mbps
    5 GHz Wi-Fi Streams3T3R (3×3 MIMO)
    2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    Wi-Fi Antennas5× Internal
    FEM or PA/LNA
    • 5 GHz: 3× External
    • 2.4 GHz: 2× External
    BeamformingTrue
    Range PerformanceMax: 200 m (656 ft)
    Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
    Wall PerformanceTwo wooden walls with thickness < 10 cm (4'')
    One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
    Interfaces2.5G RJ45 Ports1
    Ethernet NotesAccepts PoE powering
    LEDSystem
    Physical ButtonsReset Button
    Power Interfaces
    • DC Jack
    • PoE via Ethernet Port
    PowerPower Methods
    • DC
    • 802.3at/af PoE
    • Passive PoE
    Power Input
    • DC: 12V⎓1.5A
    • Passive PoE: 48-57V⎓
    • PoE: 802.3at/af
    Power Adapter in the BoxAP3000 | No adapter in the box
    AP3000_P | PoE adapter in the box:
    Input: 100 ~ 240 V, 50/60 Hz AC
    Output: 48V Passive PoE
    Max Power Consumption (W)12 W (48 V PoE) 12 W (DC)
    Idle Power Consumption (W)6.1 W (48 V PoE) 6.1 W (DC)
    ReliabilityAdvancedHardware Watchdog
    EMCESD: Contact: 4kV; Air: 8kV
    EnvironmentOperating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉)
    Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    Operating Humidity: 10% ~ 90% non-condensing
    Storage Humidity: 5% ~ 90% non-condensing
    CertificationsFCC, CE
    MechanicalInstallation
    • Wall-mount
    • Ceiling-mount
    DimensionΦ231.9×57.1 mm
    Φ9.13×2.25 inches
    Product Weight
    • With PoE Adapter (_P) | EU: 489.6 g (17.27 oz.)
    • EU: 489.6 g (17.27 oz.)
    Package Content
    • AP3000
    • Mounting Kit
    • Ethernet Cable
    • Installation Guide
    Ordering InformationRetail Package Weight
    • With PoE Adapter (_P) | EU: 1015 g (35.8 oz.)
    • EU: 850.9 g (30.01 oz.)
    Retail Package Dimension283×238×68 mm
    11.14×9.37×2.68 inches
    Units per Carton20
    Carton Net Weight
    • With PoE Adapter (_P) | EU: 20.3 kg (44.75 lbs)
    • EU: 17.0 kg (37.48 lbs)
    • UK: 19 kg (41.89 lbs)
    Carton Gross Weight
    • With PoE Adapter (_P) | EU: 21.7 kg (47.84 lbs)
    • EU: 18.2 kg (40.12 lbs)
    • UK: 20.2 kg (44.53 lbs)
    Carton Dimension58×37.5×49.5 cm
    22.83×14.76×19.49 inches
