Description
Specifications
| Specifications | |
|---|---|
| Model | CS-EB8 (3MP,4GA) |
| Camera | |
| Image Sensor | 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | Viewing angle: 100° (Diagonal), 83° (Horizontal), 44° (Vertical) |
| PT Angle | Pan: 340, Tilt: 65° |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| Night Vision Distance | IR 15 m，Color Night Vision 15 m |
| Video & Audio | |
| Max Resolution | 2304 x 1296 |
| Frame Rate | Max. 15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad-HD;Full- HD; Hi-Def. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1.5 Mbps |
| Network | |
| Frequency Bands | EU: LTE FDD: B1/B3/B7/B8/B20/B28 LTE TDD: B38/B40 LA： LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B66 LTE TDD: B38/B40 |
| Function | |
| Smart Alarm | Smart human motion detection |
| GPS | Supports |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD Card (Up to 512G) |
| Cloud Storage | EZVIZ cloud storage |
| General | |
| Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
| IP Grade | IP65 |
| Power Supply | DC 5V/2A (Adapter needs to be purchased separately) |
| Battery Capacity | 10400 mAh |
| Power Consumption | Max. 10W |

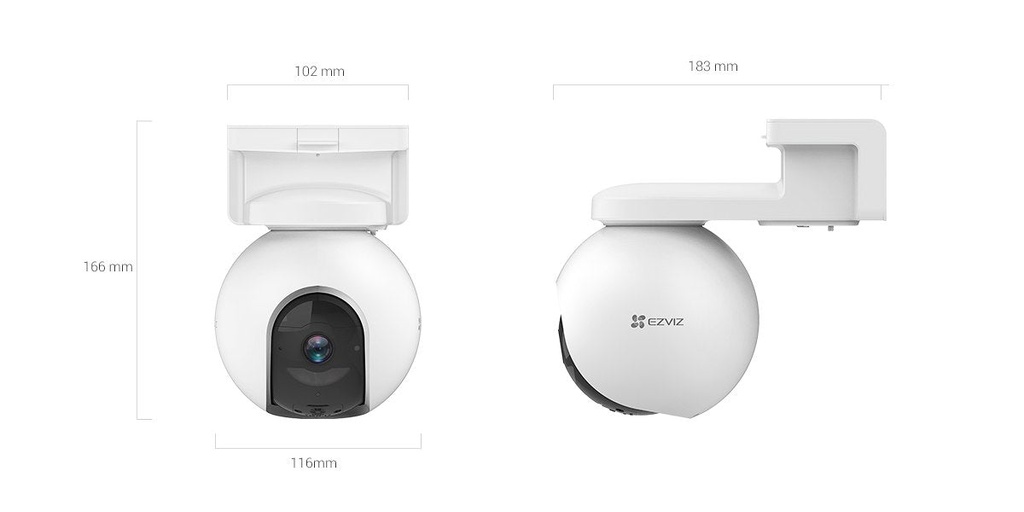

| Product Dimensions | 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch) |
| Packaging Dimensions | 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch) |
| Weight | Net weight: 835 g (26.8 Oz) With package: 1072 g (34.4 Oz) |
