Specifications
| Specification | Details |
|---|

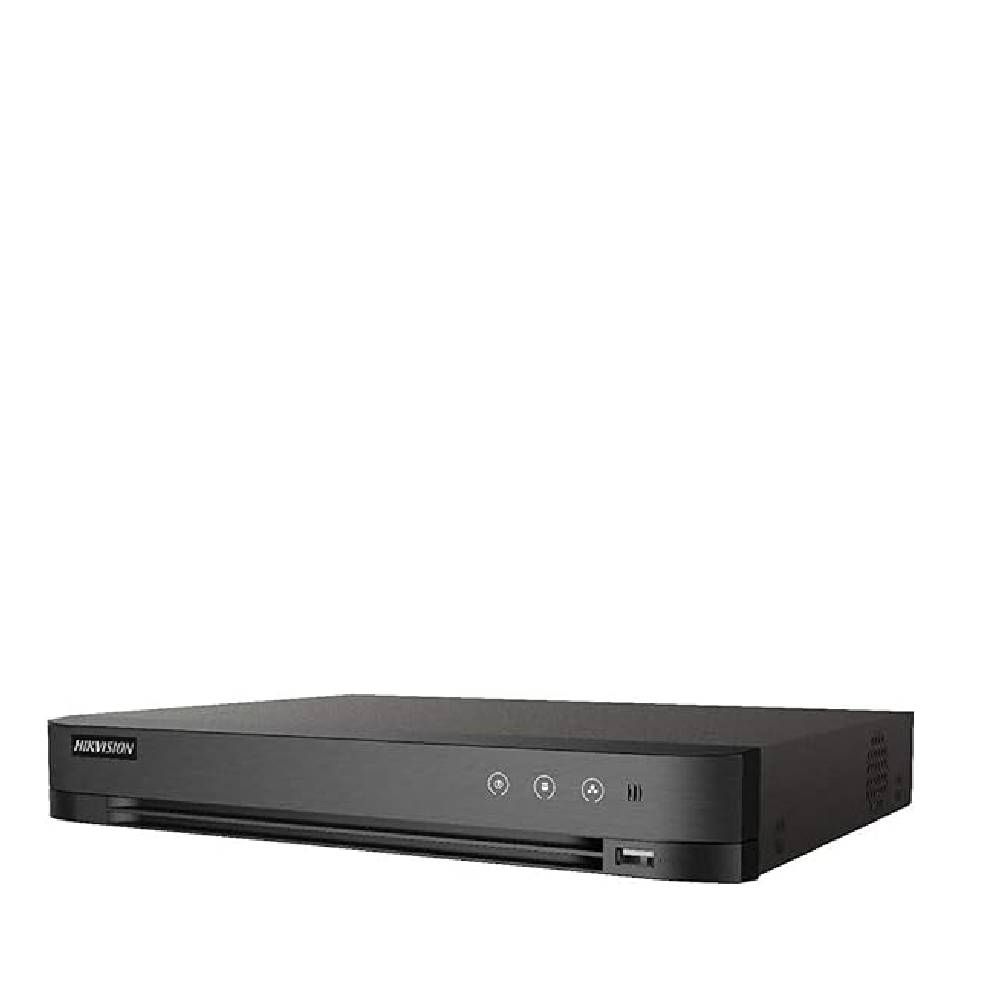

| Model | DS‑7204HUHI‑M1/S |
| Product Type | Digital Video Recorder (DVR) |
| Series | AcuSense 72 Series |
| Analog Video Input | 4 channels (HD‑TVI, AHD, CVI, CVBS) |
| IP Video Input | Up to 8 channels (Enhanced IP mode) |
| Hybrid Configuration | Analog + IP inputs supported |
| Video Compression | H.265 Pro+, H.265, H.264+, H.264 |
| Max Encoding Resolution | Up to 8 MP Lite @15 fps (1 channel), 5 MP @12 fps, 4 MP @15 fps, 3 MP @18 fps, 1080p/720p/WD1/VGA/CIF @25/30 fps |
| Sub‑Stream Resolution | WD1/4CIF/CIF @25/30 fps |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual‑Stream Support | Yes |
| Audio Input | 1 × RCA (coaxial) |
| Audio Output | 1 × RCA (linear) |
| Audio Compression | G.711u |
| Synchronous Playback | 4‑channel |
| Smart Functions | Motion Detection 2.0 (human/vehicle), perimeter protection; facial detection & face picture search |
| Network Interface | 1 × RJ45 10/100 Mbps adaptive Ethernet |
| Total Bandwidth | 96 Mbps |
| Remote Connections | Up to 32 users |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, HTTPS, ONVIF |
| USB Interface | 1 × USB 2.0 (front), 1 × USB 2.0 (rear) |
| SATA Interface | 1 × SATA (HDD support) |
| HDD Capacity | Up to 10 TB per disk |
| RS‑485 | 1 port (half‑duplex) |
| CVBS Output | 1 × BNC, PAL/NTSC resolution |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 10 W |
| Operating Temperature | –10 °C to +55 °C |
| Operating Humidity | 10% to 90% |
| Dimensions (W × D × H) | 319 × 235 × 48 mm |
| Weight | ≤ 1.16 kg |
