| Specifications |
| Model |

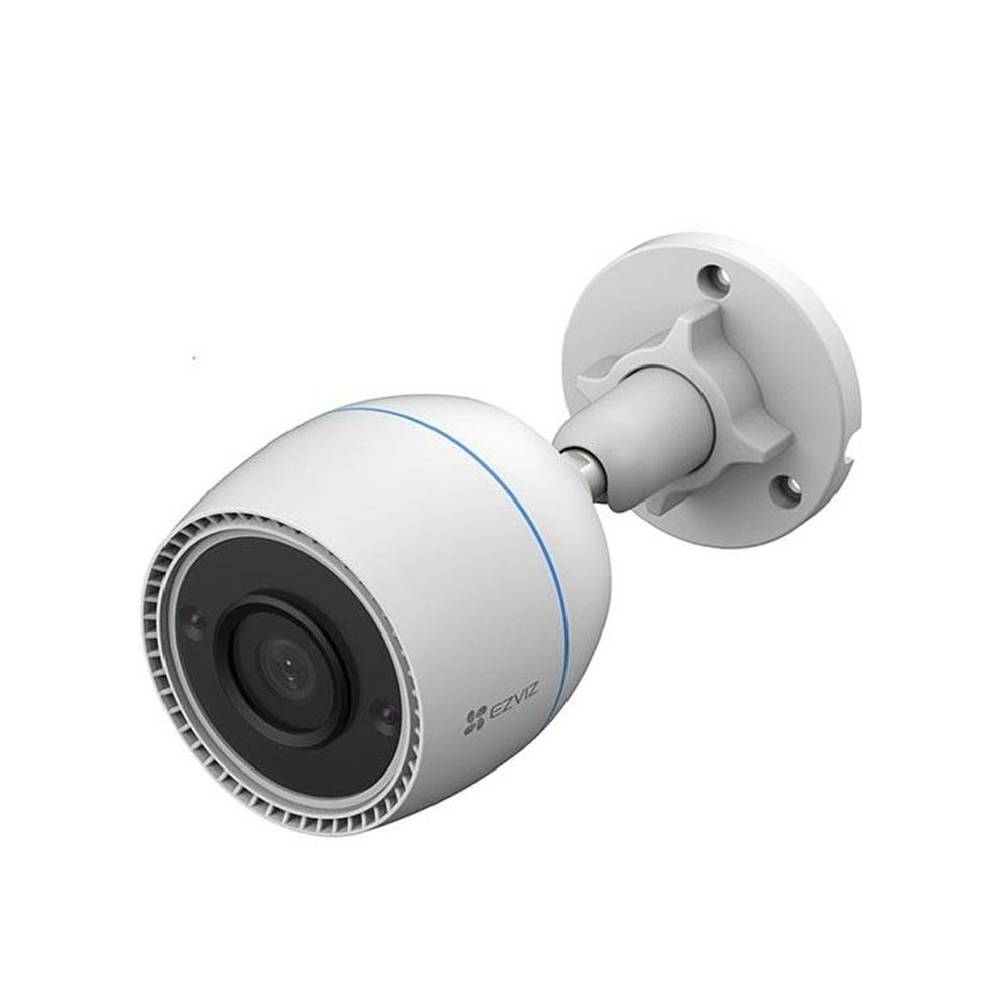

CS-H3c-R100-1K2WF |
| Camera |
| Image Sensor |
1/2.7â€Progressive Scan CMOS |
| Minimum Illumination |
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| IR Night Vision Distance |
Up to 98 ft / 30 m |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal) |
| Lens Mount |
M12 |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Day / Night Switch |
IR-Cut filter with auto-switching |
| Video & Audio |
| Max. Resolution |
1080p, 1920 × 1080 |
| Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
1 Mbps |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps |
| Wi-Fi Pairing |
AP Pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| General |
| Dimensions |
72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch) |
| Package Dimensions |
227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight |
Net weight: 250 g (8.82 oz), With Package: 447 g (15.77 oz) |
| IP Grade |
IP67 |
| Operating Conditions |
-30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
| Function |
| Detection |
AI-Powered Human Shape Detection, Motion Detection |
| Customized Alert Area |
Supports |
| Integration |
Works with Alexa, Google Assistant, IFTTT |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage |
| Local Storage |
Supports microSD card (Up to 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (Subscription required) |
| Power |
| Power Supply |
DC 12V / 1A |
| Power Consumption |
Max. 6W |
| In the box |
| In the box |
- H3c Camera |
| - Drill Template |
| - Screw Kit |
| - Waterproof Kit |
| - Power Adapter |
| - Regulatory Information |
| - Quick Start Guide |
