EATURES:

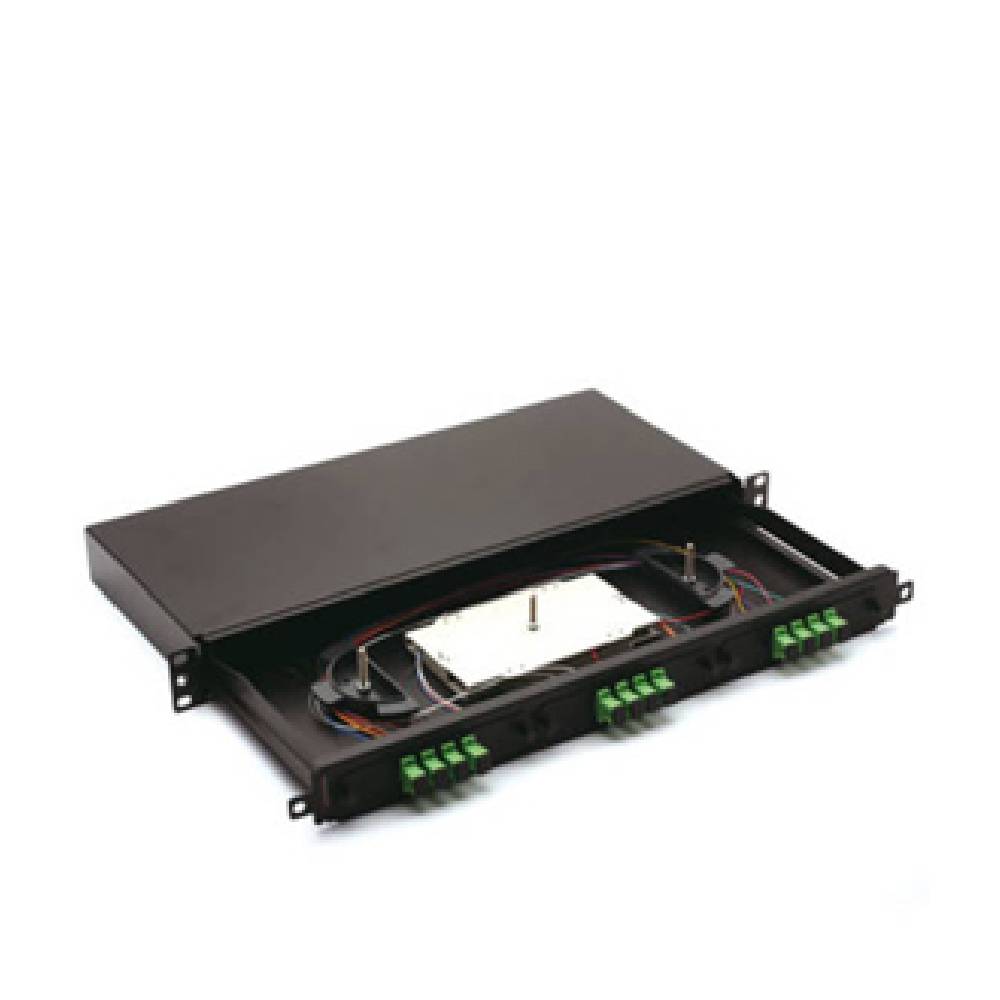

- Unique modular design and the full range of accessories allows to assembly a patch panel as needed
- Three adapter slots can be covered by SC, ST, LC or FC-D-flange adapter panels of 4,6 or 8 ports, or with blank panels. The adapter panels are available unloaded or fully loaded (see accessories)
- Splice cassette with cable routings available (see accessories)
- Position of splice cassette adjustable
- Fits all standard 19 inch racks, height / port number: 1U / 4 to 24ports
- Smooth sliding tray with a self-lock function can be opened up to an 155° angle
- Material/thickness of body and adapter panels: cold-rolled steel/6 mm
- Material of splice cassette and cable routing: ABS
- TIA/EIA 3-D compliant
- RoHS compliant
