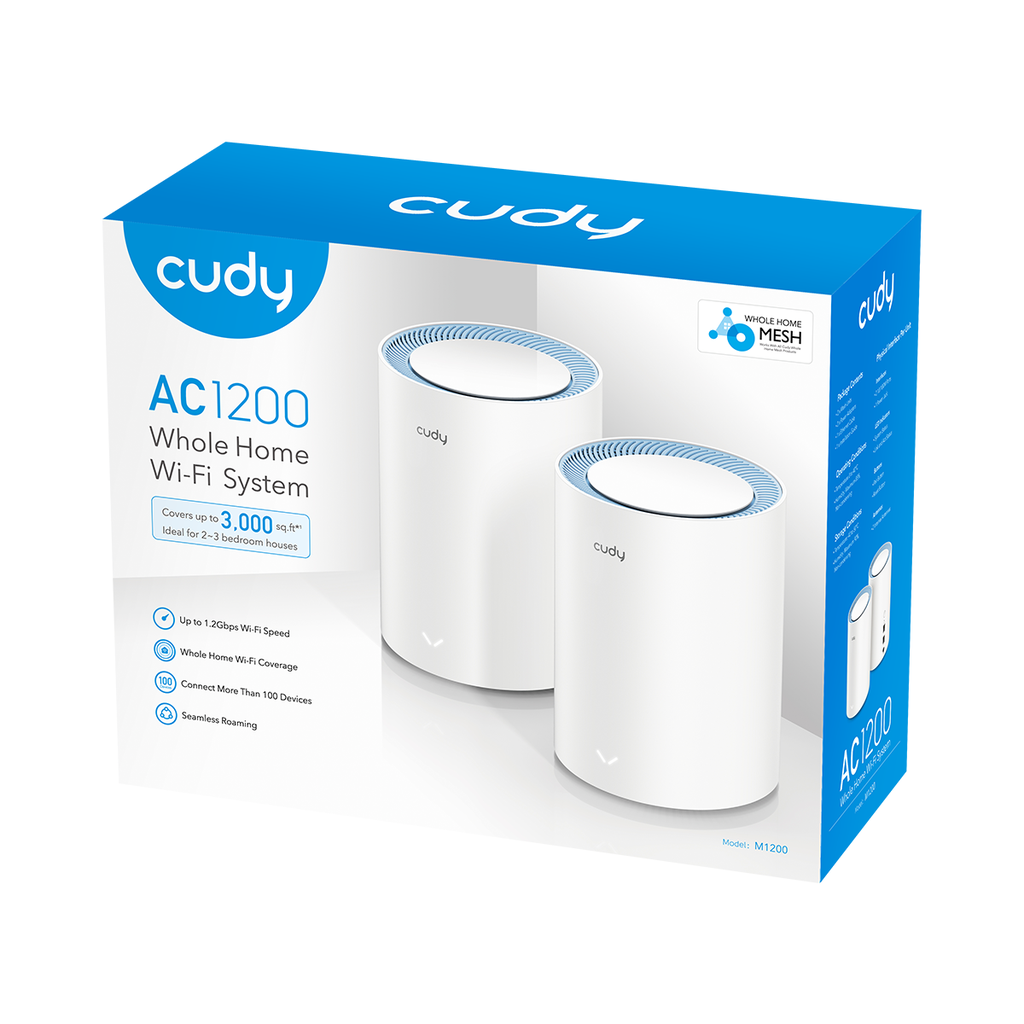

Cudy AC1200 Wi-Fi Mesh Solution 2-Pack

https://live-linkserve.odoo.com/web/image/product.template/60891/image_1920?unique=97d5ec4
(0 review)

Cudy AC1200 Wi-Fi Mesh Solution 2-Pack

1,500.00 MVR 1500.0 MVR 1,500.00 MVR GST Included

1,388.89 MVR GST Included

Not Available For Sale

    This combination does not exist.

    ADD TO CART ADD TO QUOTE
    BUY NOW
    Contact Us

    Terms and Conditions

    Description

    Specifications

    Model VersionM1200 1.0
    CPUCPU Details580 MHz Single-Core, MIPS24KEC
    Memory/StorageFlash/ROM16 MB (128 Mbit) NOR
    DDR/RAM128 MB (1 Gbit) DDR3
    Wireless5 GHz Wi-Fi Speed867 Mbps
    2.4 GHz Wi-Fi Speed300 Mbps
    5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    Wi-Fi Antennas2× Internal
    FEM or PA/LNA
    • 5 GHz: 2× Internal
    • 2.4 GHz: 2× Internal
    BeamformingTrue
    Range PerformanceMax: 170 m (558 ft)
    Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
    Wall PerformanceTwo wooden walls with thickness < 10 cm (4'')
    One concrete wall with thickness < 20 cm (7'')
    Indoor Coverage Reference2 Pack: 160 m² (1700 sq ft)
    3 Pack: 220 m² (2400 sq ft)
    Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
    Interfaces10/100 Mbps RJ45 Ports2
    Ethernet NotesPort 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode
    LEDSystem
    Physical Buttons
    • WPS Button
    • Reset Button
    Power InterfacesDC Jack
    PowerPower MethodsDC
    Power Input12V⎓1A
    Power Adapter in the BoxInput: 100-240V~, 50/60Hz
    Output: 12V⎓1A
    Max Power Consumption (W)8W
    ReliabilityEnvironment
    • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
    • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Humidity: 10% ~ 90% non-condensing
    • Storage Humidity: 5% ~ 95% non-condensing
    CertificationsFCC, CE
    MechanicalInstallationDesktop
    DimensionΦ110×154.5 mm
    Φ4.33×6.08 inches
    Product Weight
    • 2-Pack | EU: 586 g (20.67 oz.)
    • 3-Pack | EU: 879 g (31.01 oz.)
    • 1-Pack | EU: 293 g (10.34 oz.)
    Package Content
    • M1200
    • Power Adapter
    • Ethernet Cable
    • Installation Guide
    Ordering InformationRetail Package Weight
    • 2-Pack | EU: 1156 g (40.78 oz.)
    • 3-Pack | EU: 1658 g (58.48 oz.)
    • 1-Pack | EU: 661 g (23.32 oz.)
    Retail Package Dimension1-Pack:
    145×130×265 mm
    5.71×5.12×10.43 inches,2-Pack:
    330×130×265 mm
    12.99×5.12×10.43 inches,3-Pack:
    380×130×265 mm
    14.96×5.12×10.43 inches
    Units per Carton
    • 1-Pack: 16
    • 2-Pack: 8
    • 3-Pack: 4
    Carton Dimension
    • 1-Pack: 57×56×26 cm
      22.44×22.05×10.24 inches
    • 2-Pack: 55×54.5×35.3 cm
      21.65×21.46×13.9 inches
    • 3-Pack: 53.6×40×28.7 cm
      21.1×15.75×11.3 inches
    Carton Gross Weight
    • 2-Pack | EU: 10.8 kg (23.81 lbs)
    • 3-Pack | EU: 7.6 kg (16.76 lbs)
    • 1-Pack | EU: 12.0 kg (26.46 lbs)
    Carton Net Weight
    • 2-Pack | EU: 9.4 kg (20.72 lbs)
    • 3-Pack | EU: 6.6 kg (14.55 lbs)
    • 1-Pack | EU: 10.6 kg (23.37 lbs)
