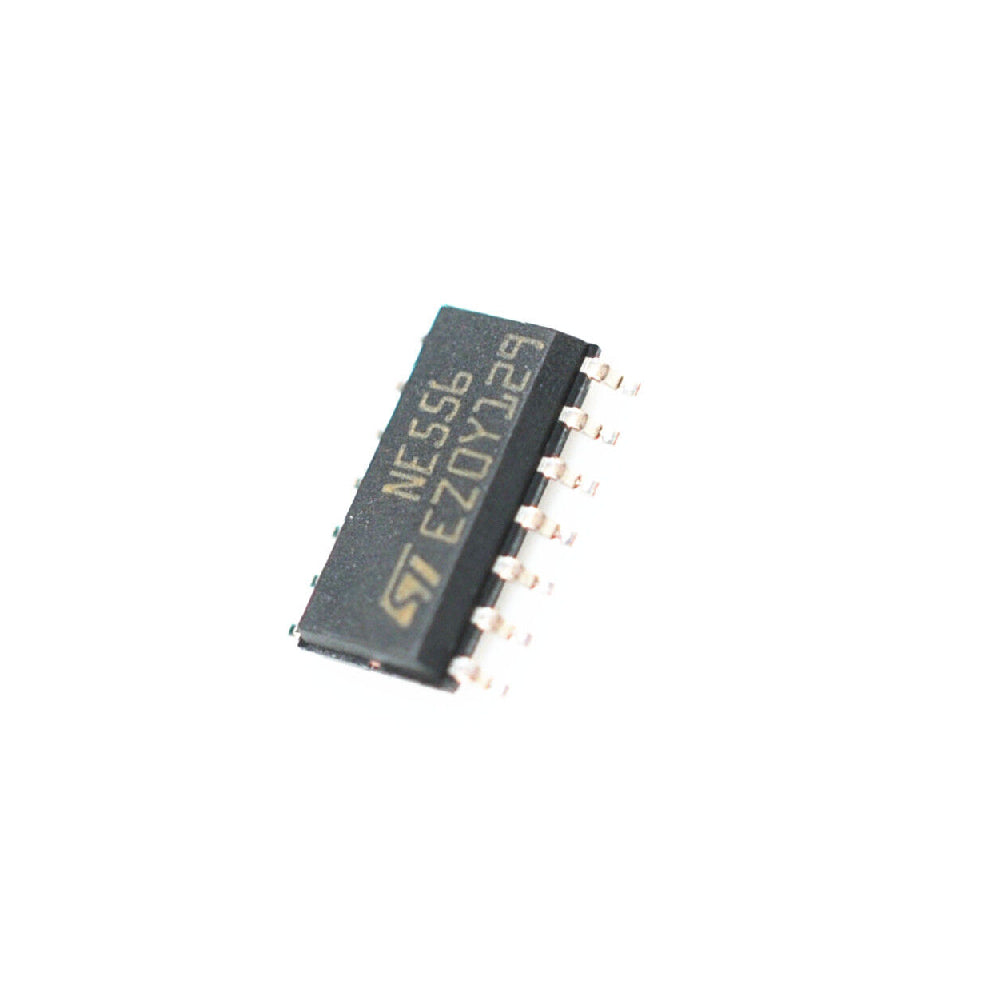

NE556 ( SMD)

Specifications

Features
– Direct replacement for SE556/NE556
– Timing from microseconds through hours
– Operates in both astable and monostable modes
– Replaces two 555 timers
– Adjustable duty cycle
– Output can source or sink 200mA
– Output and supply TTL compatible
– Temperature stability better than 0.005% per ?C
– Normally on and normally off output
Applications
– Precision timing
– Pulse generation
– Sequential timing
– Time delay generation
– Pulse width modulation
– Pulse position modulation
– Linear ramp generator
