Description
Specifications
| Model | CS-DB2-A0-2C5WPFBR |
| Camera Parameters | Image Sensor: 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) Lens: 2.0 mm @ F2.0, view angle: 176° (Diagonal) Day & Night: IR-cut filter with auto-switching |
| Video Parameters | Max. Resolution: 2544 × 1888 DNR: 2D/3D DNR Video Compression: H.265 / H.264 Frame Rate: Max: 15fps; Self-Adaptive during network transmission |
| PIR Sensor | Sensing Angle: 100° Sending Distance: Max. 5 m (16.4 ft) Sensitivity: User adjustable (High, Medium, and Low Sensitivity) |
| Interface | Audio Input: Built-in high-sensitivity microphone Audio Output: Built-in high-power speaker Reset button: Yes |
| Network Parameters | Intelligent Alarm: PIR + human shape smart motion detection Tamper Alarm: Sound and light anti-dismantling alarm (supports sending alerts to the smartphone) Video Intercom: Long-distance video two-way talk Protocol: EZVIZ Cloud Proprietary Protocol Interface Protocol: EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Parameters | Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n Frequency Range: 2.4 GHz ~ 2.4835 GHz Channel Bandwidth: Supports 20 MHz Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |

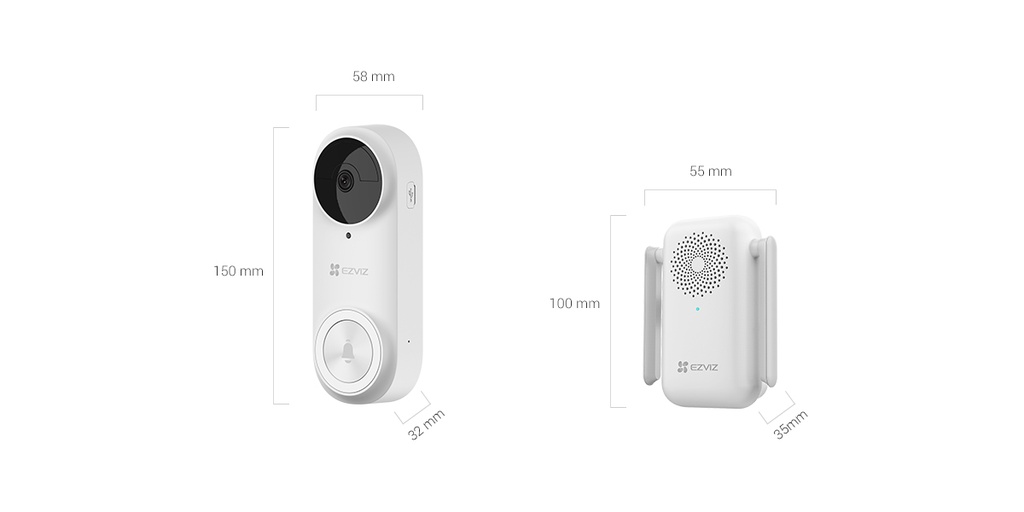

| General | Operating Conditions: -20°C to 50°C (-4°F to 122°F), Humidity 95% or less (non-condensing) Ingress Protection Grade: IP65 Weight: 241.35 g (8.5 oz) Size: 150 × 58 × 32 mm (5.91 × 2.28 × 1.24 inch) Battery Capacity: 5200mAh rechargeable lithium battery Power Supply: DC5V±10% 2A Power Consumption: Max. 2W |
| Chime | Size: 100 × 55 × 35 mm (3.94 × 2.17 × 1.38 inch) Power Supply: AC 110 ~ 240V Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n Audio Output: 72 dB within 1 meter Storage: Supports microSD card up to 256 GB Weight: 120 g (4.2 oz) |
| In the Box |
- DB2 Pro Video Doorbell - Chime - Mounting Plates - Inclined Mounting Plates (2) - Screwdriver and Screw Kits (2) - Foam Sticker - Plate Foam - Drill Template - Pin - U-shaped Wire and Wire Connectors (3) - Power Cable - Quick Start Guide - Installation Guide - Regulatory Information |
