Specifications

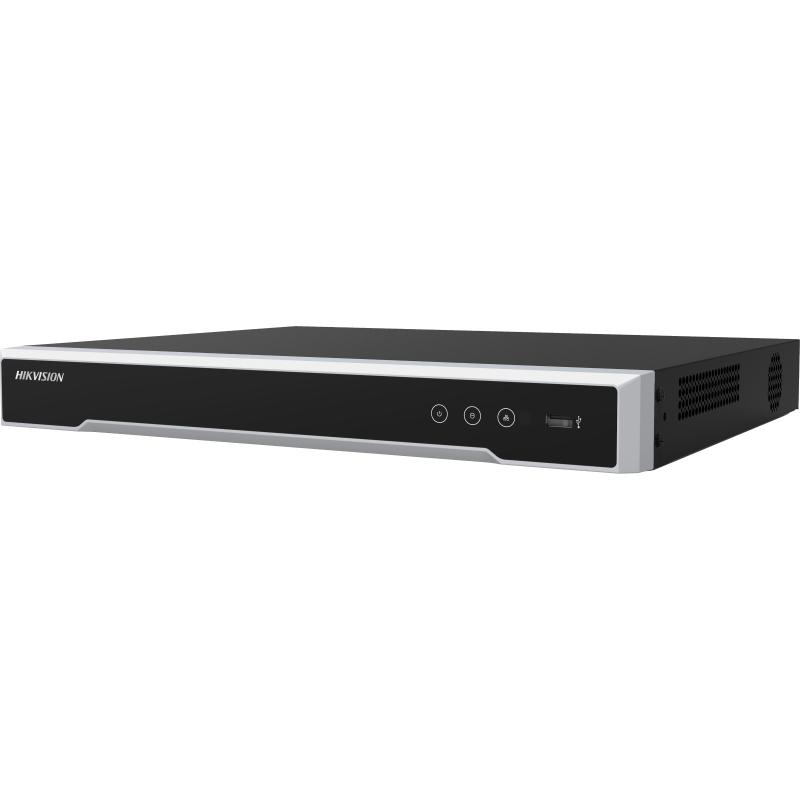

| Model | DS-7616NI-Q2/16P |
| Video Inputs | Up to 16 IP camera channels |
| Maximum Resolution | Supports up to 8 MP camera resolution |
| Decoding Capacity | 1 channel at 8 MP, or 5 channels at 1080p |
| Incoming Bandwidth | Up to 160 Mbps |
| Outgoing Bandwidth | Up to 80 Mbps |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Video Outputs | 1 HDMI output (up to 4K 3840 x 2160 at 30Hz), 1 VGA output (up to 1080p) |
| Audio Input/Output | 1 RCA audio input, 1 RCA audio output |
| PoE Ports | 16 independent PoE ports (IEEE 802.3af/at) |
| Storage | 2 SATA interfaces, supports up to 8 TB per HDD |
| Network Interface | 1 RJ-45 10/100/1000 Mbps Ethernet port |
| USB Ports | 2 x USB 2.0 |
| Decoding Formats | H.265+/H.265/H.264+/H.264/MPEG-4 |
| Recording Modes | Manual, scheduled, motion detection |
| Smart Functions | Supports Video Content Analytics like motion detection, line crossing, intrusion detection |
| Remote Access | Hik-Connect app, Web client, iVMS-4200, Hik-Central |
| Power Supply | AC 100-240V, ≤ 280 W consumption |
| Operating Temperature Range | -10°C to +55°C |
| Dimensions (W x D x H) | 385 mm x 315 mm x 52 mm (15.2" x 12.4" x 2.0") |
| Weight | Approx. 2.6 kg (without HDD) |
