Description
Specifications
| Specification | Details |
|---|---|

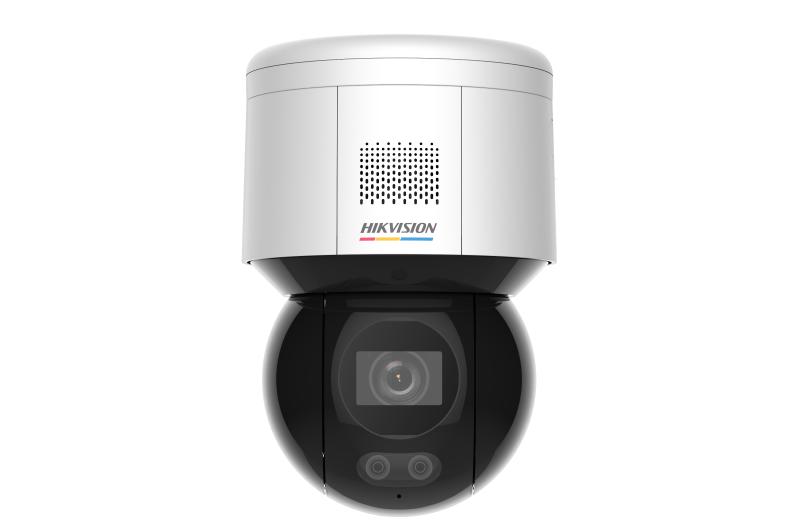

| Model | DS‑2DE3A400BW‑DE/W(F) |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Max. Resolution | 2560 × 1440 (4 MP) |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light (Hikvision) |
| Shutter Speed | 1/1 s to 1/30,000 s (Hikvision) |
| Day & Night | 24/7 color imaging (Hikvision) |
| Zoom | 16× digital (Hikvision) |
| Lens Focal Length | 4 mm (Hikvision) |
| Field of View (FOV) | Horizontal: 88.7°; Vertical: 46.5°; Diagonal: 105.0° (Hikvision) |
| Aperture | F1.0 (Hikvision) |
| Illuminator | White Light; up to 30 m range (Hikvision) |
| PTZ Movement — Pan | 350° (Hikvision) |
| PTZ Movement — Tilt | 0° to 90° (Hikvision) |
| Pan Speed | Configurable 0.1°–60°/s; Preset 60°/s (Hikvision) |
| Tilt Speed | Configurable 0.1°–50°/s; Preset 50°/s (Hikvision) |
| Presets | Up to 300 (Hikvision) |
| Video Streams | Main, Sub, Third; various resolutions & frame rates (hikvision-sk.sk) |
| Video Compression | H.265+/H.265/H.264+/H.264; MJPEG on sub/third (hikvision-sk.sk) |
| Image Enhancements | 120 dB WDR, 3D DNR, HLC, BLC, Defog, ROI (dipolnet.com) |
| Privacy Masks | Up to 24 masks (dipolnet.com) |
| Intelligent Features | Face detection, classification, line crossing, intrusion detection (sps24.eu) |
| Audio | Built‑in microphone and speaker (two‑way) (sps24.eu) |
| Network Interface | 1 × RJ‑45 10/100 Mbps; Wi‑Fi 2.4 GHz (IEEE 802.11 b/g/n) (dipolnet.com) |
| Power Supply | 12 V DC / PoE (802.3at) (sps24.eu) |
| Power Consumption | ≤ 16 W (sps24.eu) |
| Operating Temperature | –30 °C to 65 °C (–22 °F to 149 °F) (sps24.eu) |
| Protection Rating | IP66 weatherproof (Hikvision) |
| Dimensions (W × H × D) | Approx. 179.3 mm × 120 mm × 182 mm (sps24.eu) |
| Weight | Approx. 1.12 kg (sps24.eu) |
