push bar

Description

Specifications

Description

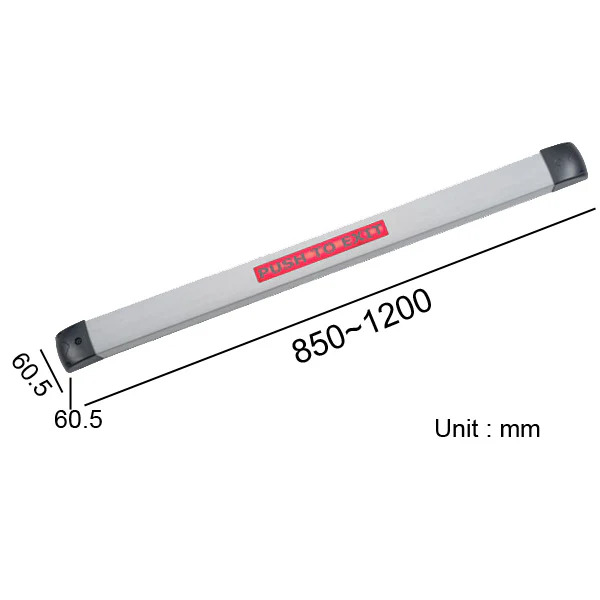

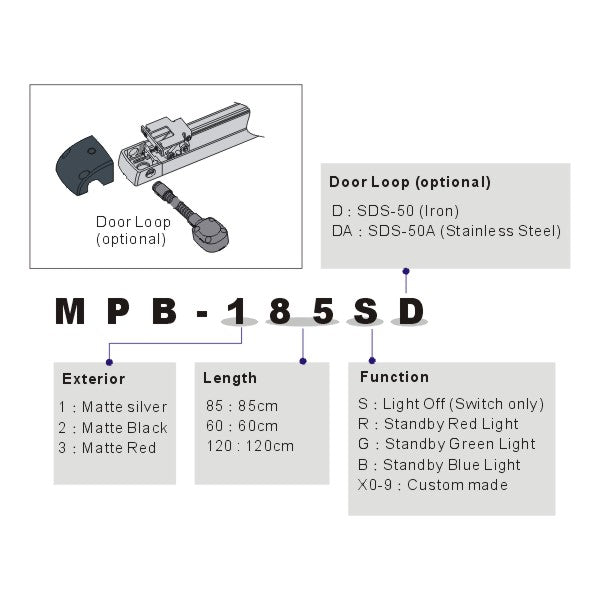

• MPB-185 Length：85 cm
• MPB-160 Length：60 cm
• MPB-1120 Length : 120 cm

Features

• Provide 3-D operation functions : Pressing, LED indicator, and sound warning. Wide range of applications especially for accessible environment.
• Stand-alone and driven modes. Big triple-color Bar and buzzer available for user  to adjust under driven mode. Volume of buzzer is able to adjust under either mode.
• Built-in  micro-computer control. Two sets of output points to adjust output time. Buzzer sound is accompanied with output. It is also available to set as intermittent reminder before completion of output.
• Push bar can be activated permanent mechanically by a lock.
• When its electronic control is out of order ( power cut or malfunction of internal board ), it will Automatically change to mechanical control without output delay function.

• Power Input	DC 12V/ DC 24V
  Current Consumption	150mA@12VDC / 75mA@24VDC
  Contact load	≦5A@230VAC
  Output Status	Trigger (0.5-60 sec.)/  Toggle (Use of a key to control)
  Indicator Color	Built-in Red / Blue / Green 3 colors  ( 210L 25W mm )
  Buzzer Decibel	Maximun 92 Decibel (Adjustable)
  Suitable Door Leaf Width	＞60CM
  Contact life	≧100,000 times
  Mechanical lock	Sustain permanent output state
  Operation Temperature	Approximately 0℃~70℃
  Warranty period	1 year
  Weight	1900g
