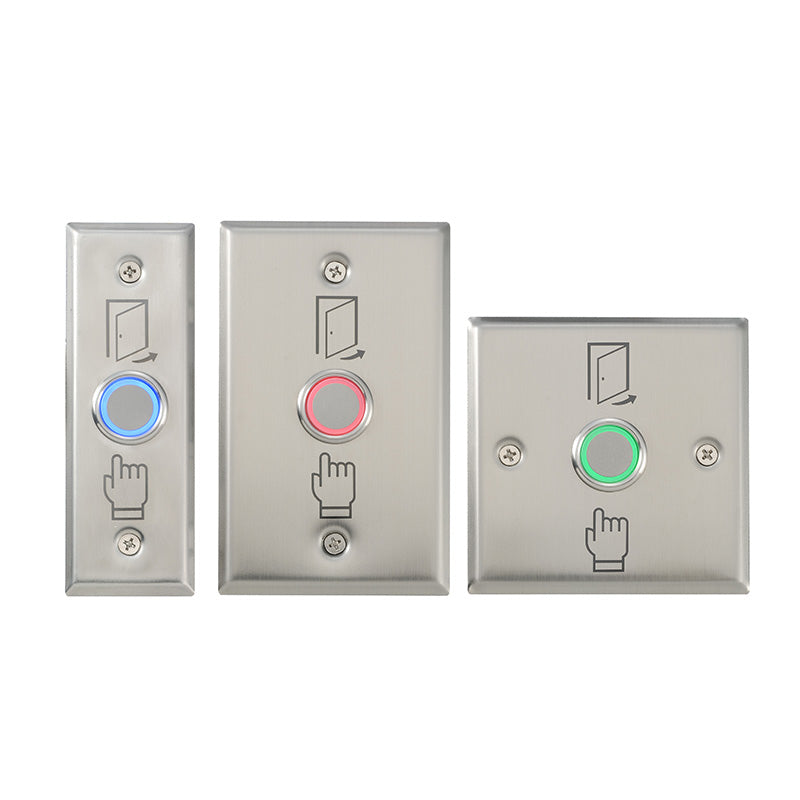

push button

Description

Specifications

Description

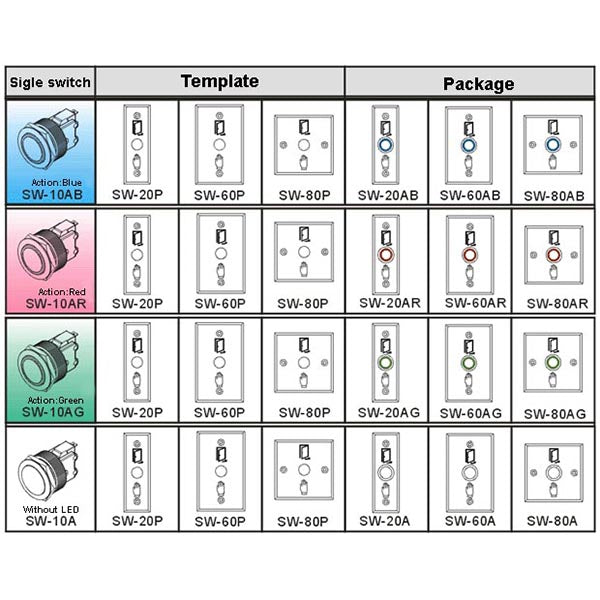

SW (Type)- 20 (Panel) A B (Indicator lights) Type :
• SW as mechanical switch.
• SI as infrared proximity.
Specifications:
• 10 as single switch without panel.
• 20 as panel with dimensions of 115x39x4.7(mm).
• 60 as panel with dimensions of 115x70x4.7(mm).
• 80 as panel with dimensions of 86x86x4.7(mm).
Indicator lights:
• R as red light
• B as blue light
• G as green light
• Example : SW-20AB as door frame panel with mechanical switch and blue indicator light.

Features

Mechanical series:
• Strong and durable SUS304 stainless steel button and panel design which resists strong acid and alkali.
• Suitable for hollow door frame and electrical box use.Voltage of DC12V±20% for LED.
• The diagram shows world universal use.
• The front of the detector is waterproof design.
• Custom-made micro-switch according to user's requirements (such as waterproof or currents).
• Operation temperature range: -20℃~ 60℃. Humidity 85%Rh max.
• Mechanical life:1,000,000 cycles.
• Contact rating: 5A@250VAC N.O./N.C. Output.
Dimensions :
• SW-20A：115X39X4.7(mm)
• SW-60A：115X70X4.7(mm)
• SW-80A：86X86X4.7(mm)
Weight :
• SW-20A： 96g
• SW-60A： 126g
• SW-80A： 119g
