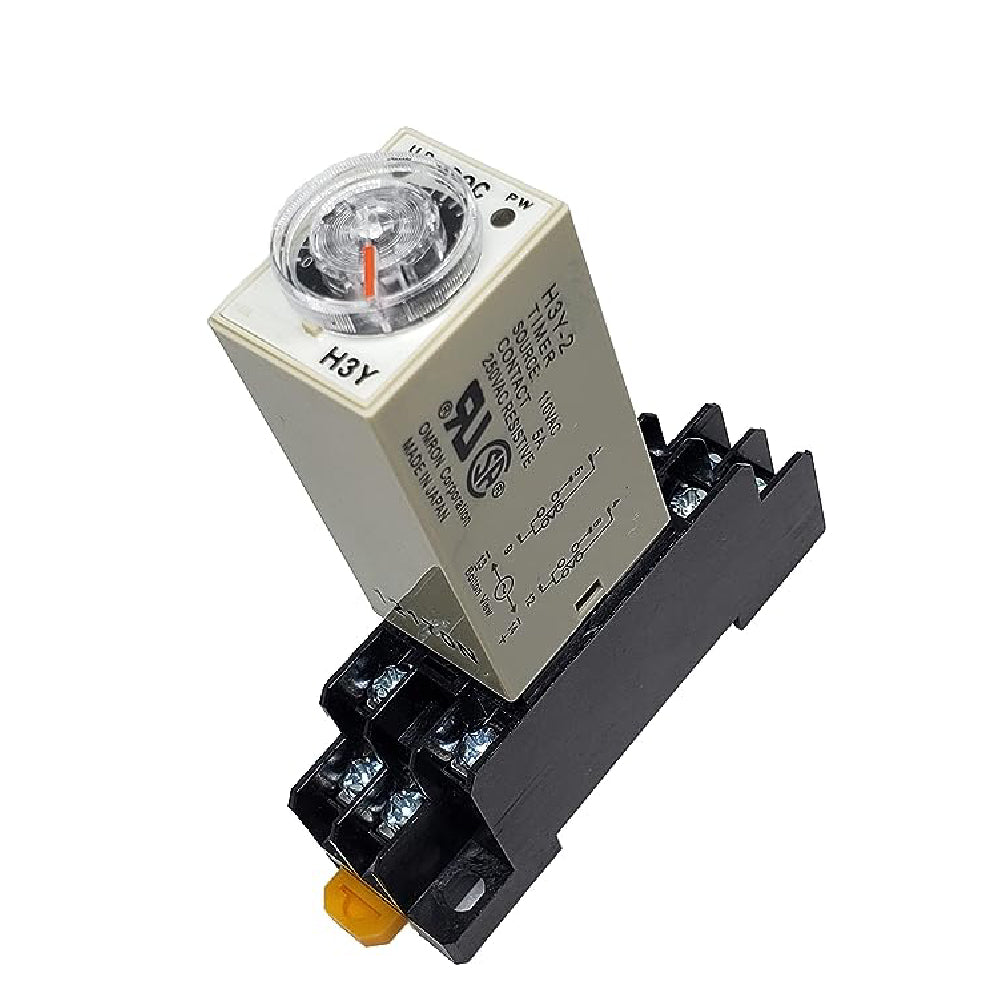

H3Y-2 AC 220V Delay Timer Time Relay Switch 0 - 30 Seconds Adjustable 5A Without Base Socket

H3Y-2 AC 110V delay timer time relay + H3Y-2 base
Model : H3Y-2
Material : Metal, Aluminum, Plastic
Supply voltage : AC 110V
Allowable voltage change range : 90%~110% of supply voltage
Power consumption : 0.1W~1.1W
Contact Capacity : 240VAC 5A
Work mode : electricity delay
Pins : 8
Rated time Range : 0~60 s
Environment Temperature : -10℃ - +50℃
Environment Humidity : 35%~85%
Relay Size (L x W x H) : Approx. 5.7 x 2.8 x 2.2cm / 2.2 x 1.1 x 0.9 inch
Base Size (L x W x H) : Approx. 7 x 2.3 x 3.1cm / 2.7 x 0.9 x 1.2 inch

The relay has two indicator LEDs; one lights up once it receives 110VAC power showing the time sequence has been initiated; the second one comes on once the selected time has elapsed and relay is energized.
