Description
Specifications

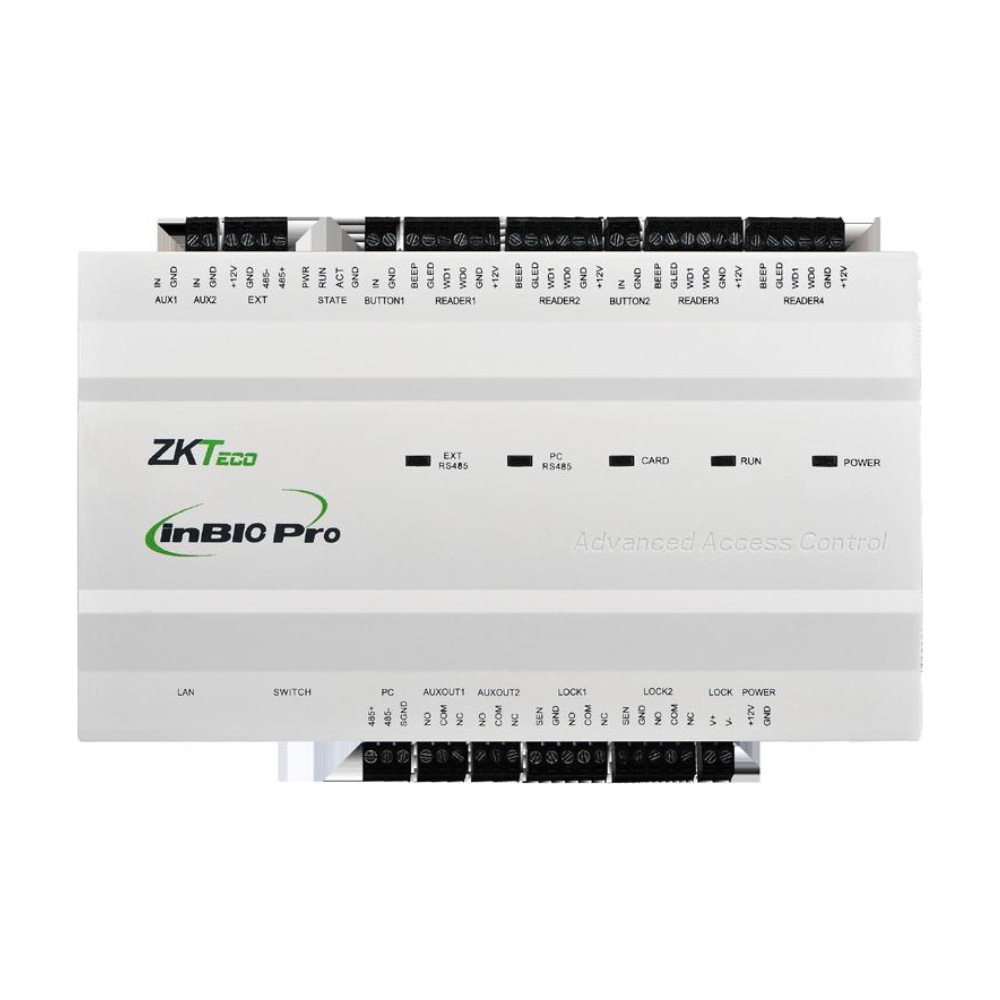

InBio Pro Series is a project oriented high-end product line with unique features such as embedded fingerprint verification and advanced access control functions, which can be managed by TCP/IP communication thru LAN or WAN networks. The InBio Pro Series are the perfect match for ZKBioSecurity web based software platform to provide a full featured biometric security solution. In combination with the FR1300 RS485 reader, the panels can authenticate users under multiple verification modes such as fingerprint, card and password for a higher security level.
SPECIFICATIONS
| Number of Doors Controlled | 2 |
| Number of Readers Supported | 8 (4 RS-485 Reader, 4 26-bit wiegand reader) |
| Types of Readers Supported | 26-bit Wiegand and RS485 FR Series Reader |
| Number of Inputs | 6 (2 Exit Button, 2 Door Status, 2 AUX) |
| Number of Outputs | 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output) |
| Card Holders Capacity | 60,000 |
| Fingerprint Capacity | 20,000 |
| Log Events Capacity | 100,000 |
| Communication | TCP/IP |
| CPU | 32 bit 1.2GHz CPU |
| Flash Memory | 256MB |
| RAM | 128MB |
| Power Supply | 9.6V - 14.4V DC |
