Specifications

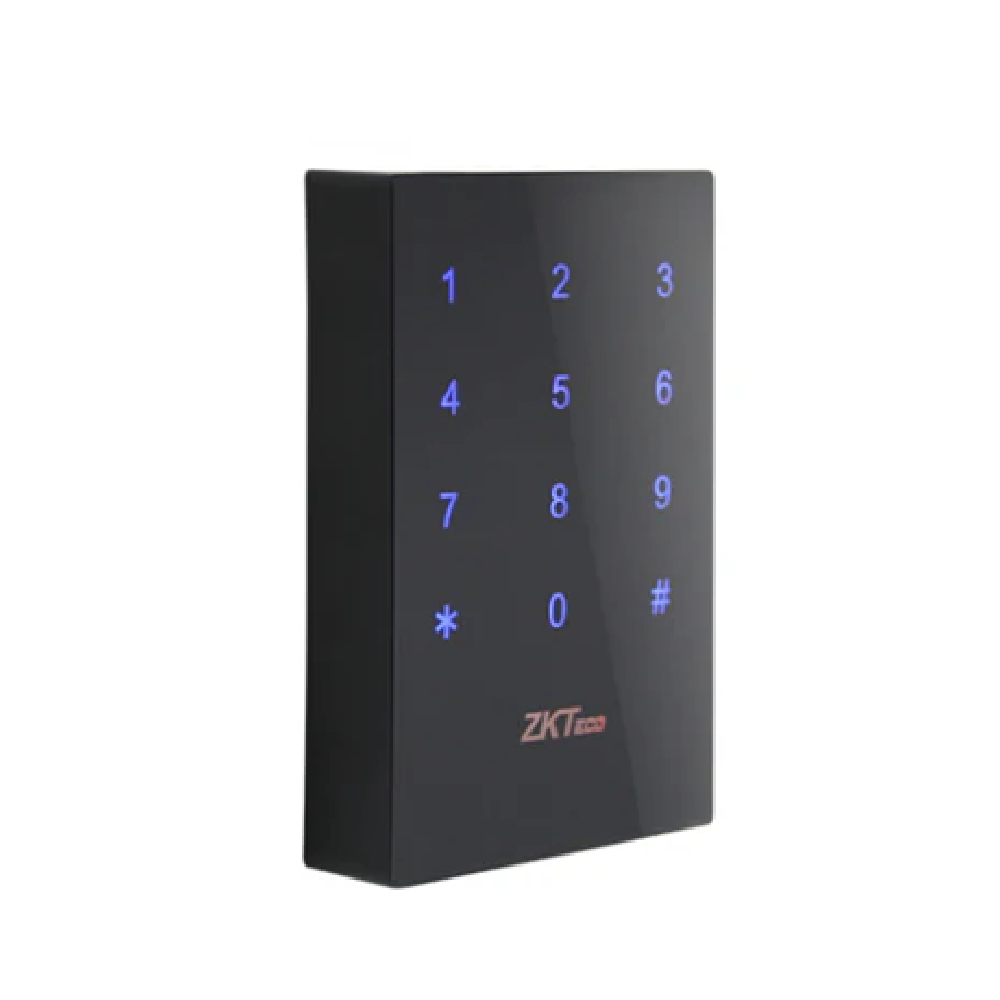

KR702 reader is a full touch key waterproof reader, the Product is IP65 waterproof, and can be used for outdoor. The reader further enrich the diversity of ZK reader product. Meanwhile, the product is made of full acrylic appearance, full touch key, design high-end fashion, and suitable for the application of high-end places.
SPECIFICATIONS
| Model | KR702E | KR702M |
|---|---|---|
| Wiegand Signal | Wiegand 26 | Wiegand 34 |
| Power Supply | 12V DC,<90mA | 12V DC,<90mA |
| Effective Distance | 0~8 | 0~8 |
| Read Time | <80ms | <80ms |
| Operating Frequency | 125KHz | 13.56MHz |
| Operating Temperature | 0 °C- 70 °C | 0 °C- 70 °C |
| Operating Humidity | 20%-80% | 20%-80% |
| Dimension(LxWxH) | 113x75x16mm | 113x75x16mm |
