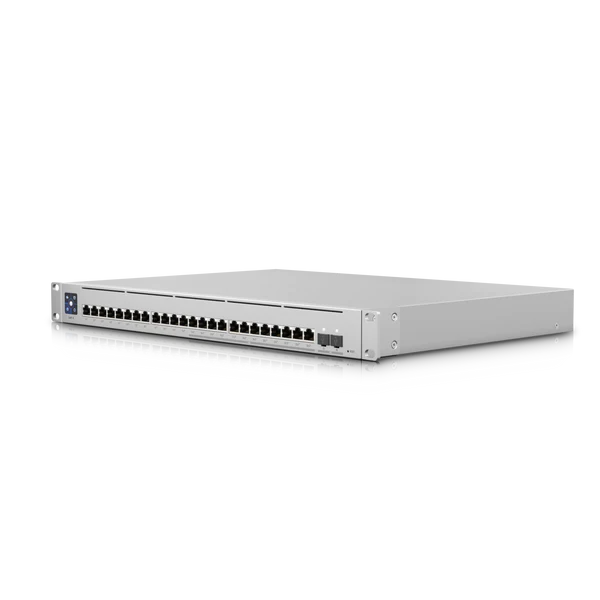

 24-port, Layer 3 PoE switch.
Features:
- (12) 2.5GbE, PoE+ RJ45 ports and (12) GbE, PoE+ RJ45 ports
- (2) 10G SFP+ ports
- (1)Â USP RPSÂ DC input for power redundancy
- 400W total PoE availability
- 1.3" LCM color touchscreen with AR switch management
Â
SPECIFICATIONS
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Weight | Without mounting brackets: 5.11 kg (11.27 lb) With mounting brackets: 5.2 kg (11.46 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface | (12) 10/100/1,000 MbE RJ45 ports (12) 100/1,000/2,500 MbE RJ45 ports |
| Management interface | Ethernet In-Band |
| SFP+ interface | (2) 10G SFP+ ports |
| PoE interface | (24) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 62 Gbps |
| Switching capacity | 124 Gbps |
| Forwarding rate | 92.25 Mpps |
| Max. power consumption | 550W |
| Power method | (1) Universal AC input, 100—240V AC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 550W |
| Max. PoE+ wattage per port by PSE | 34.2W |
| PoE budget | 400W |
| Voltage range PoE mode | 44— 57V |
| Voltage range PoE+ mode | 50—57V |
| Services | SMB Layer 3 PoE GbE switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" LCM color touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| SFP+ | Link/activity |
