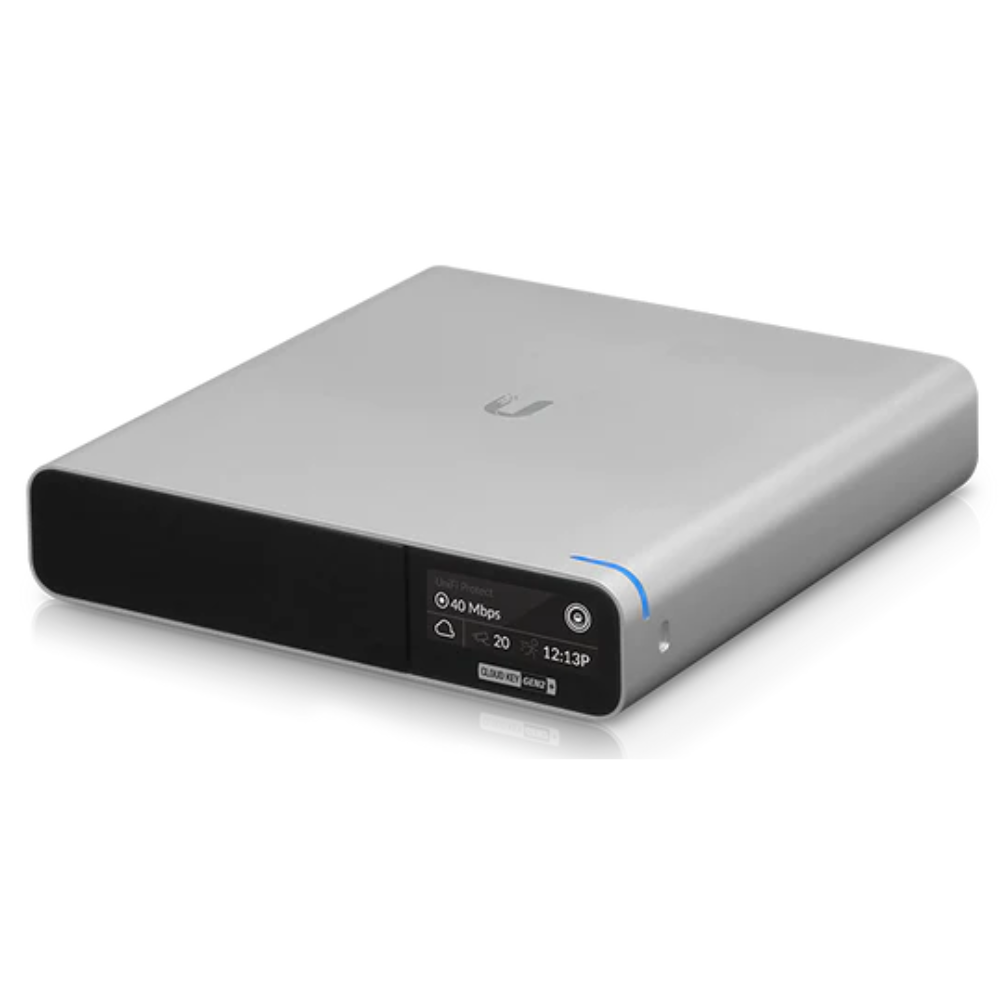

Compact, desk or rack mountable UniFi OS Console with a pre-installed 1TB hard drive (HDD).
FEATURES
- Pre-installed with UniFi Network and Protect
- Powered via PoE or QC 2.0 USB-C
- (1) 2.5" HDD bay with a pre-installed 1TB HDD
SPECIFICATIONS
| Mechanical | |
|---|---|
| Dimensions | 131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3") |
| Weight | 582 g (1.3 lb) |
| Enclosure material | Anodized aluminum |
| Hardware | |
| Processor | Octa-core Arm® Cortex®-A53 based chip |
| Management interface | UniFi Protect |
| Networking interface | (1) GbE RJ45 port |
| Memory | 32 GB eMMC |
| Hard drive capacity | 1 TB 2.5" SATA HDD (user-upgradeable*) * The Cloud Key Gen2 Plus only supports hard drives that can operate on 5V power. Hard drives that require additional power are not supported. |
| Device capacity |
UniFi Protect mode: Up to 20 G3 cameras Up to 10 G4 cameras UniFi SDN + UniFi Protect: Up to 15 G3 cameras and 50 UniFi devices Up to 7 G4 cameras |
| Power method | PoE Quick charge 2.0/3.0 power adapter, 9V DC, 2A |
| Max. power consumption | 12.95W |
| LEDs | (1) Power: white/blue |
| Buttons | (1) Power (1) Factory reset |
| Operating temperature | 0 to 35° C (32 to 104° F) |
| Operating humidity | 20 to 80% noncondensing |
| Certifications | FCC, CE, IC |
