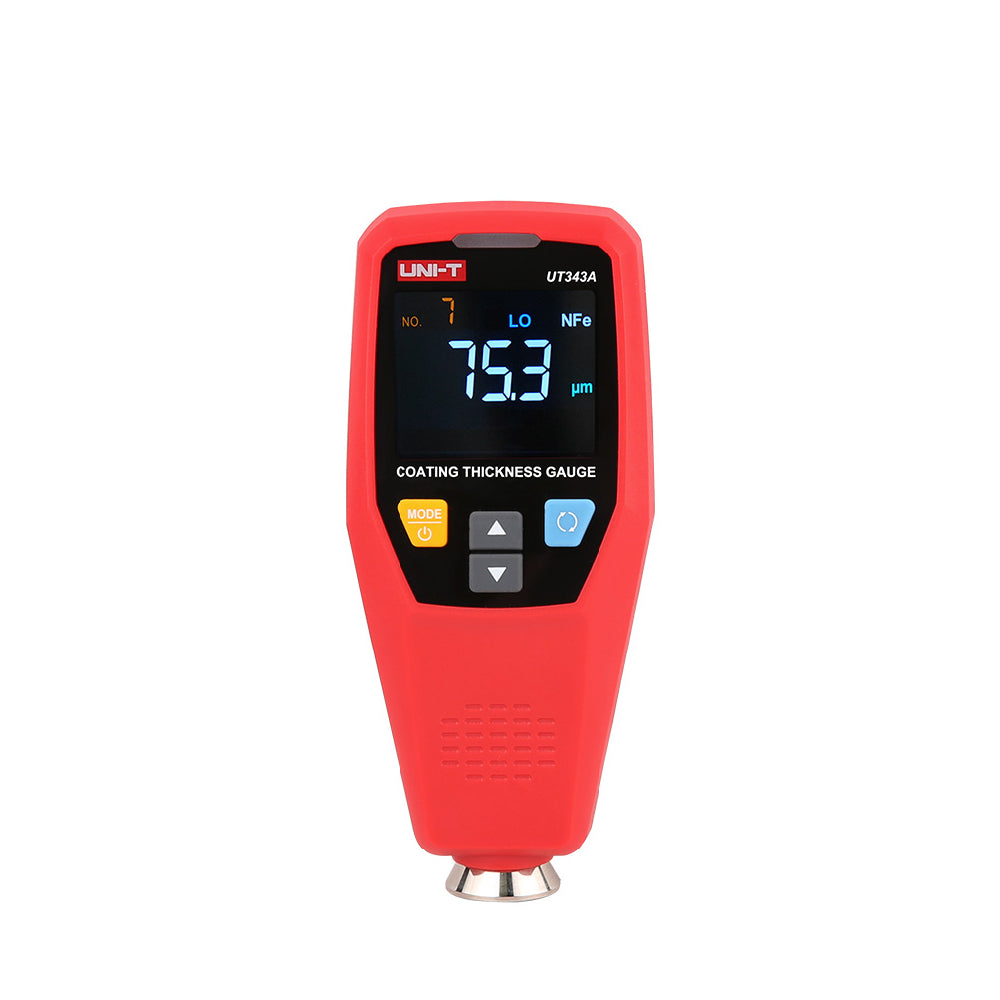

![[83630] UNI-T Coating Thickness Gauge - UT343A Image](/web/image/product.image/9999/image_1024/%5B83630%5D%20UNI-T%20Coating%20Thickness%20Gauge%20-%20UT343A%20Image%20?unique=d000ff4)
![[83630] UNI-T Coating Thickness Gauge - UT343A Image](/web/image/product.image/9999/image_128/%5B83630%5D%20UNI-T%20Coating%20Thickness%20Gauge%20-%20UT343A%20Image%20?unique=d000ff4)
Specifications of UT343A Coating Thickness Gauge
Description
Specifications
| Specifications | Range |
| Certificates | RoHS |
| Measuring range | 0~1750um |
| Accuracy | ±(3%H+1)um |
| Measurement method | Single/Continuous |
| Measurement mode | Max/Min/Avg |
| Metal type | Ferrous/non-ferrous |
| Features | |
| Display type | EBTN display |
| LCD brightness control | √ |
| Rotatable screen | √ |
| Unit conversion | √ |
| Audio alarm | √ |
| LED alarm | √ |
| Data storage | 199 groups |
| Auto power off | √ |
| Low battery indication | √ |
| General Characteristics | |
| Power | 1.5V battery (LR03) x 2 |
| Product color | Red and grey |
| Product net weight | About 111g |
| Product size | 117mm x 53mm x 37mm |
| Standard accessories | Ferrous substrate, non-ferrous substrate |
