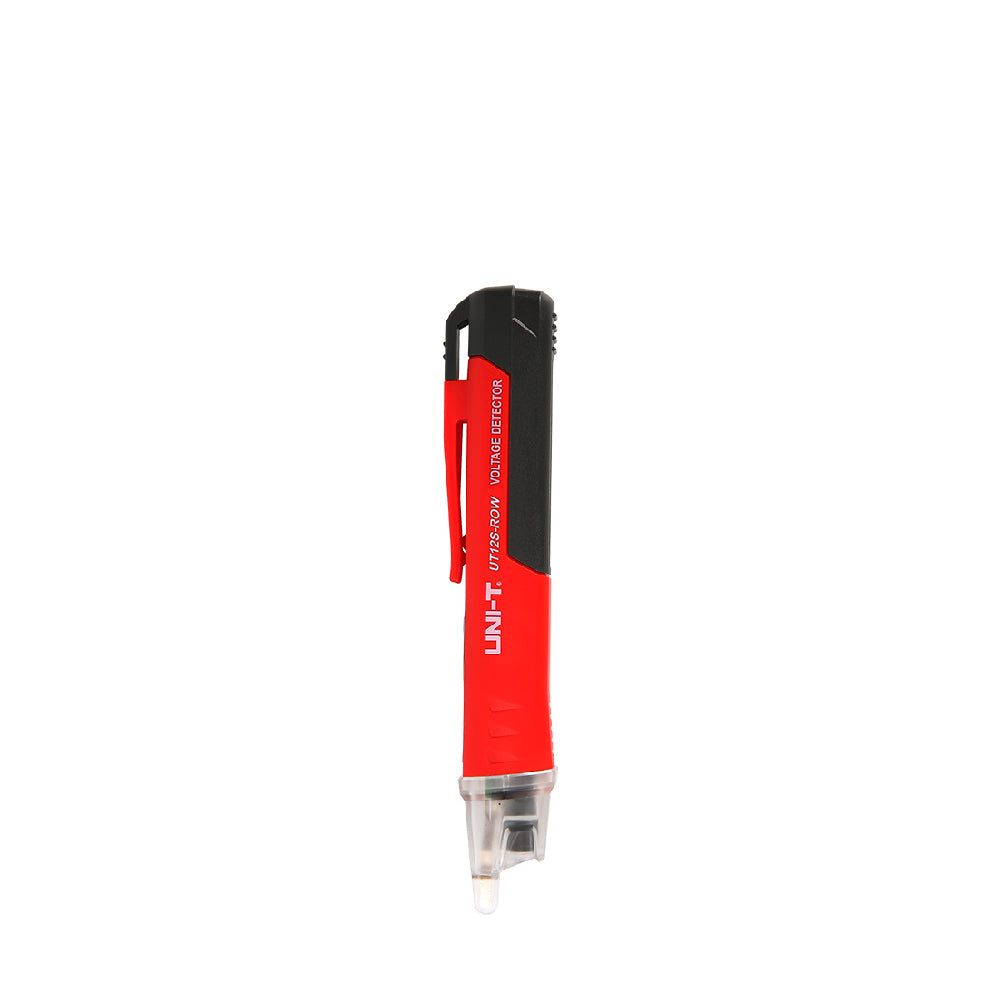

![[83622] UNI-T AC Voltage Detector - UT12D-ROW Image](/web/image/product.image/9998/image_1024/%5B83622%5D%20UNI-T%20AC%20Voltage%20Detector%20-%20UT12D-ROW%20Image%20?unique=2acb9f1)
![[83622] UNI-T AC Voltage Detector - UT12D-ROW Image](/web/image/product.image/9998/image_128/%5B83622%5D%20UNI-T%20AC%20Voltage%20Detector%20-%20UT12D-ROW%20Image%20?unique=2acb9f1)
Specifications of UT12S-ROW/UT12D-ROW AC Voltage Detectors
Specifications
| Specifications | UT12S-ROW | UT12D-ROW |
| AC voltage (Low) | 24V~1000V | |
| AC voltage (High) | 90V~1000V | 90V~1000V |
| Frequency range | 50/60Hz | |
| Built-in flashlight | √ | √ |
| ※Audible (buzzer) and visual (LED) indication | √ | √ |
| Buzzer | √ | √ |
| LED indication | √ | √ |
| Auto power off | √ | √ |
| Low voltage indication | √ | √ |
| Drop test | 1m | 1m |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Product color | Red and grey | |
| Product net weight | 50g | |
| Product size | 150mm x 18 mm x 23mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 40pcs | |
| Standard carton measurement | 350mm x 245 mm x 210mm | |
| Standard carton gross weight | About 3.6kg | |
