Specifications
|
Product Name: |
rocker push switch (hold type) on - off 4 pin |
|
Product No.: |
PS102-201N001R1B(S) |
|

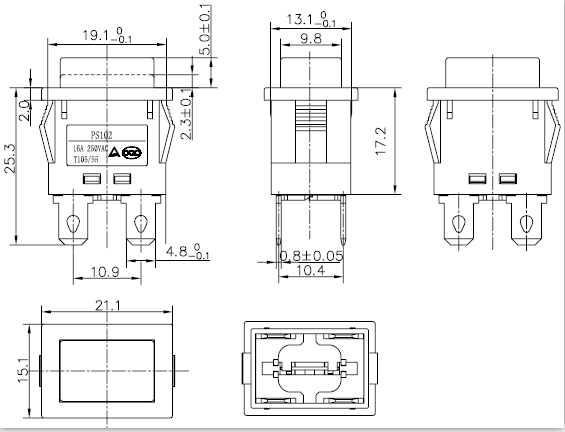

Dimension: |
21.1X15.1 |
|
Maximum Rating: |
16A,250V |
|
Dielectric Strength: |
≥1500 V AC |
|
Contact Resistance: |
≤50mΩ |
|
Insulation Resistance: |
≥100mΩ |
|
Electrical Life:Â |
 >10000 Cycles |
|
Soldering ability |
230±10℃/ 3±1s |
|
Certifications: |
TUV UL CQC VDE |
