Description
Specifications

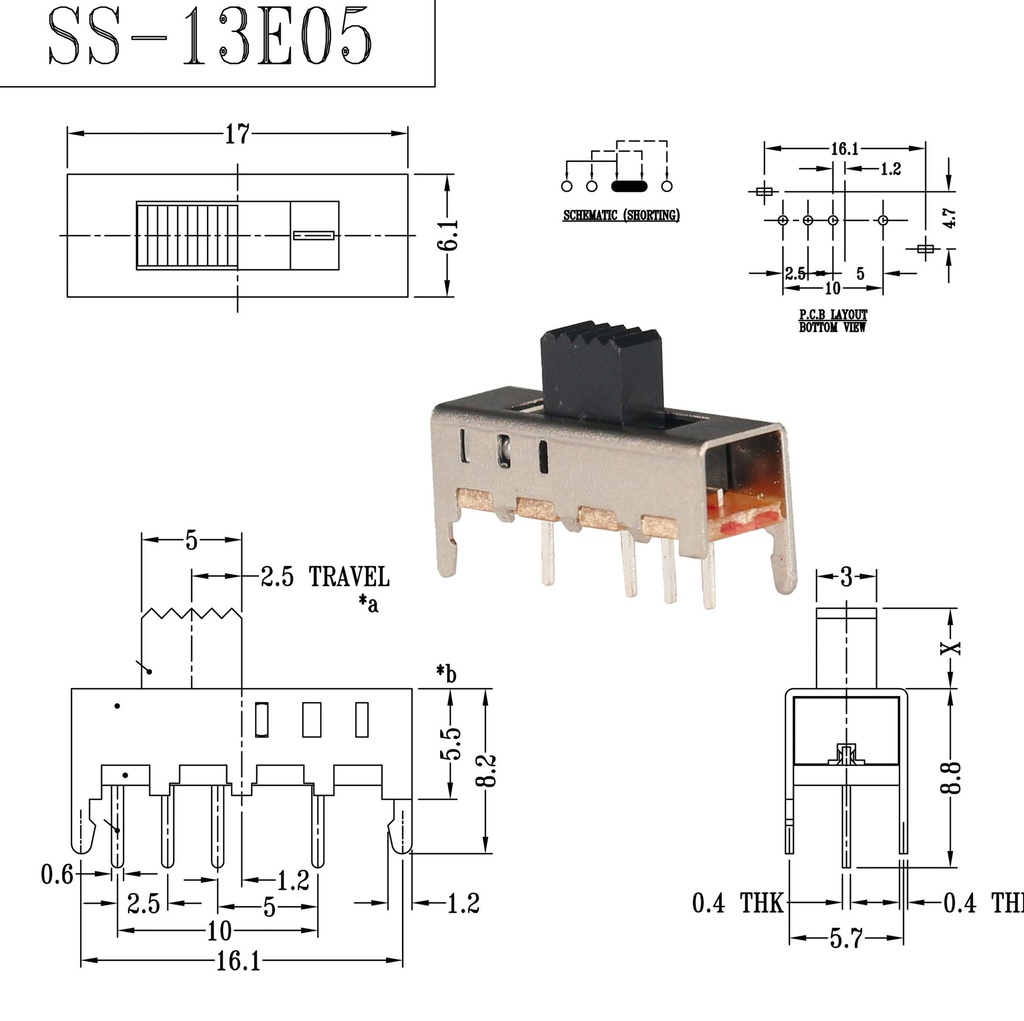

Wiring toggle schematic slide switch 3 position 3 way 4 pin
Specs
Current rating: DC 50V 0.5A
Contact resistance: Max 50mΩ
Insulation resistance: 100MΩ at 500V DC
Life: 10000 cycles
Activate: 260gf ± 50gf
Operating temperature: -20°C-+70°C
Tall: 2-12MM
