Specifications

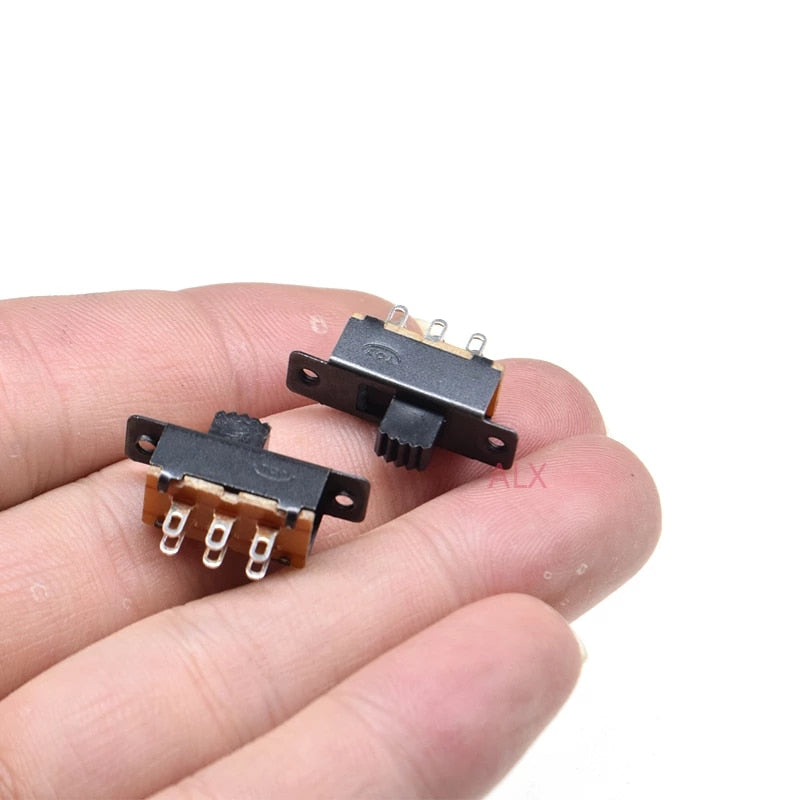

Product name: slide switch
Model: ss22f25
Action Type: dpdt
Positions: 2 positions
Terminal quantity: 6Â
Working Power: 0.5A 50V DC
Contact resistance: 30mohm max
Insulation resistance: 100mohm min at 500v dc
Support Voltage: AC 500V for 1 min
Terminal Length: 4mm/ 0.16"
Toggle Overall Size: 23x7.5x21mm/ 0.9"x0.29"x0.83"(L*W*H)
Button Size: 5x3.5x7mm / 0.2" x 0.14" x 0.28" (L*L*H)
Material (external): plastic, metal
Main color: silver tone, black
Weight: 20g
Easy structure, mini body, 6 terminals, vertical handle, 2 poles 2 positions, sliding button actuator.
Widely used to control the operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.
Also a great component for DIY.
Package Content: 10 x Slide Switch
Note: Light photography and different displays may cause the color of the item in the picture a little different from the real thing. The allowable measurement error is/- 1-3cm.
Location: switch boxes "H"
