Specifications
Key Specifications/ Special Features:
- Max. Current: 50mA
- Max. Voltage: DC12V
- Operating Temperature: -20℃~+85℃
- Protection Level: Safe

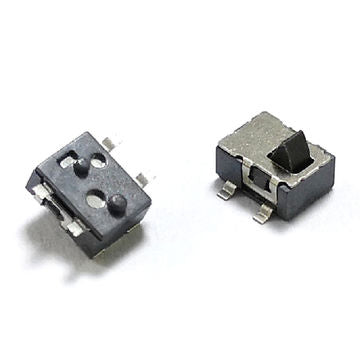

- Name: detector switch
- Contact Resistance: ≤200mΩ
- Insulation Resistance: ≥100MΩ
- Operating Force: 50±20 gf
- Full Travel: 1.0±0.5mm
- Operation life: 50,000 cycles
- Solder temperature: 245±5℃
- Push force: 250±50gf
- Return force: 50gf
- Preservative temperature range: -40℃~+85℃
