Specifications
Specifications

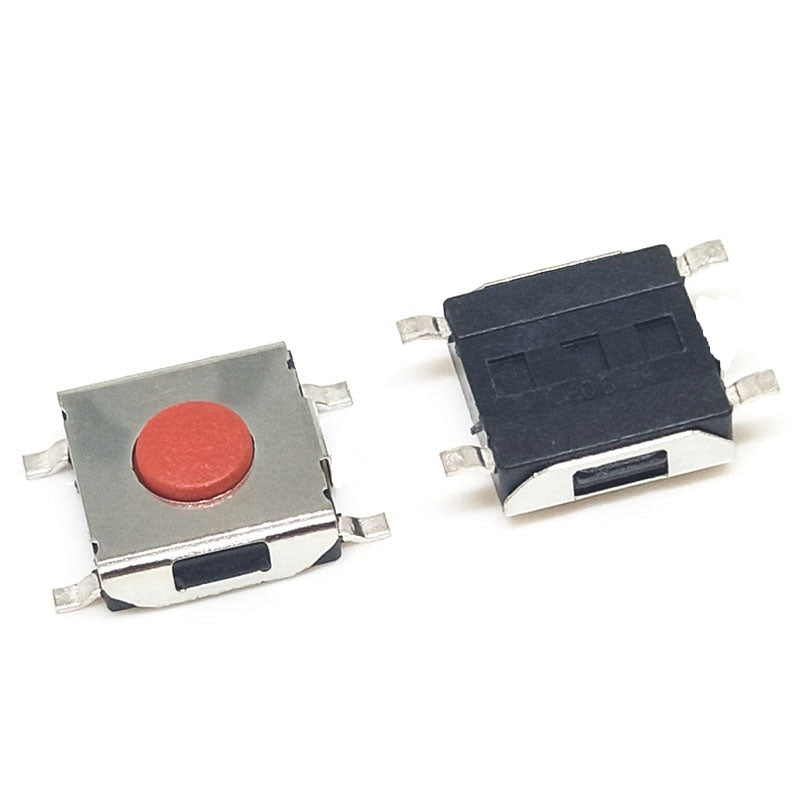

- Product Name: Tact Switch
- Type: SPST
- Action Type: Momentary
- Pin Number: 4
- Dimension: 6x6x2.5mm/0.24×0.24×0.1 inch
- Button Diameter: 3mm/0.12inch
- Material: Plastic, Metal, Electric Parts
- Net Weight:5g
Electrical Specifications
- Electrical: 50,000 cycles for 160gf
- Rating: 50mA/12VDC
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100MΩ min., at 500VDC
- Dielectric Strength: 250 VAC / 1 minute
Mechanical Specifications
- Operation Force: 160±50gf Brown (N)
- Stroke: 0.25+0.2/-0.1mm
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Contact Arrangement: 1 pole 1 throw
