Description
Specifications
Parameters

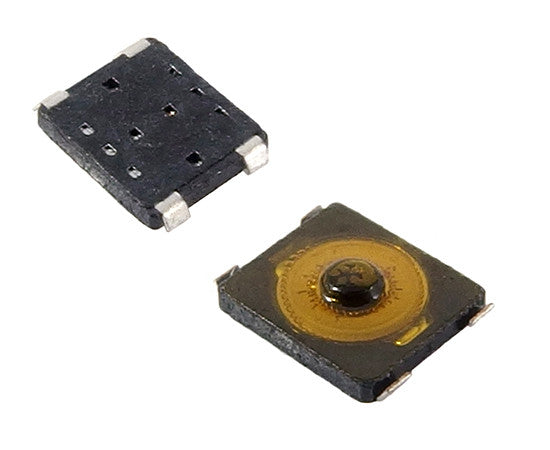

Tact switch 3.4x2.6mm H=0.65mm (0.25mm), 12V DC, 50 mA, life 100000 cycles, pitch 0.2c0.1mm SMD, pressing force 300c50gf, return force 70gf min.

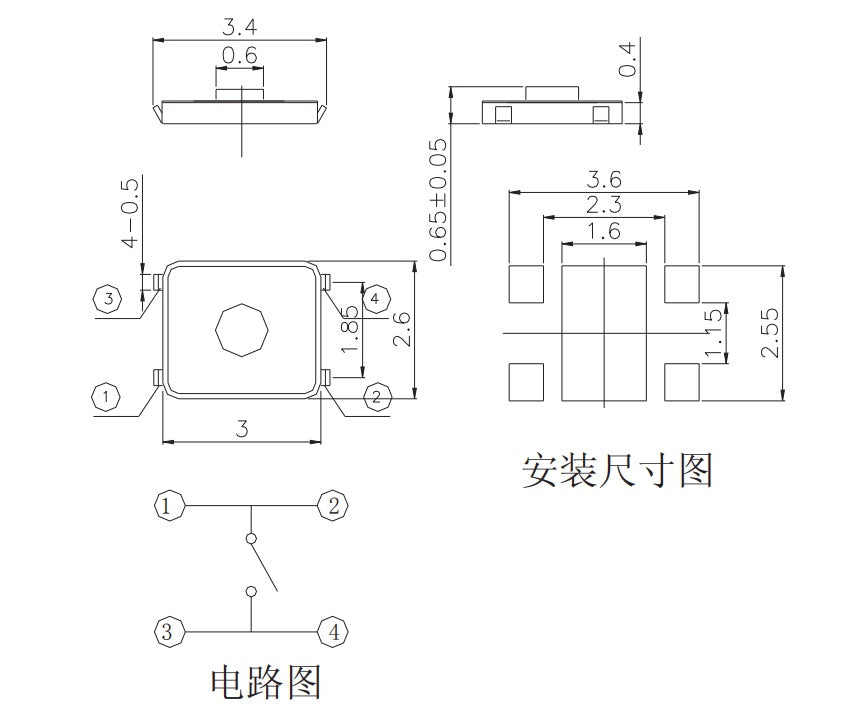

| Body dimensions: | 3.4x2.6mm |
| Height: | 0.65mm |
| Pressing force [gF]: | 300gF |
| Producer: | TACTRONIC |
| Mechanical durability: | 100000 cycles |
| Installation: | SMD |
