Description
Specifications

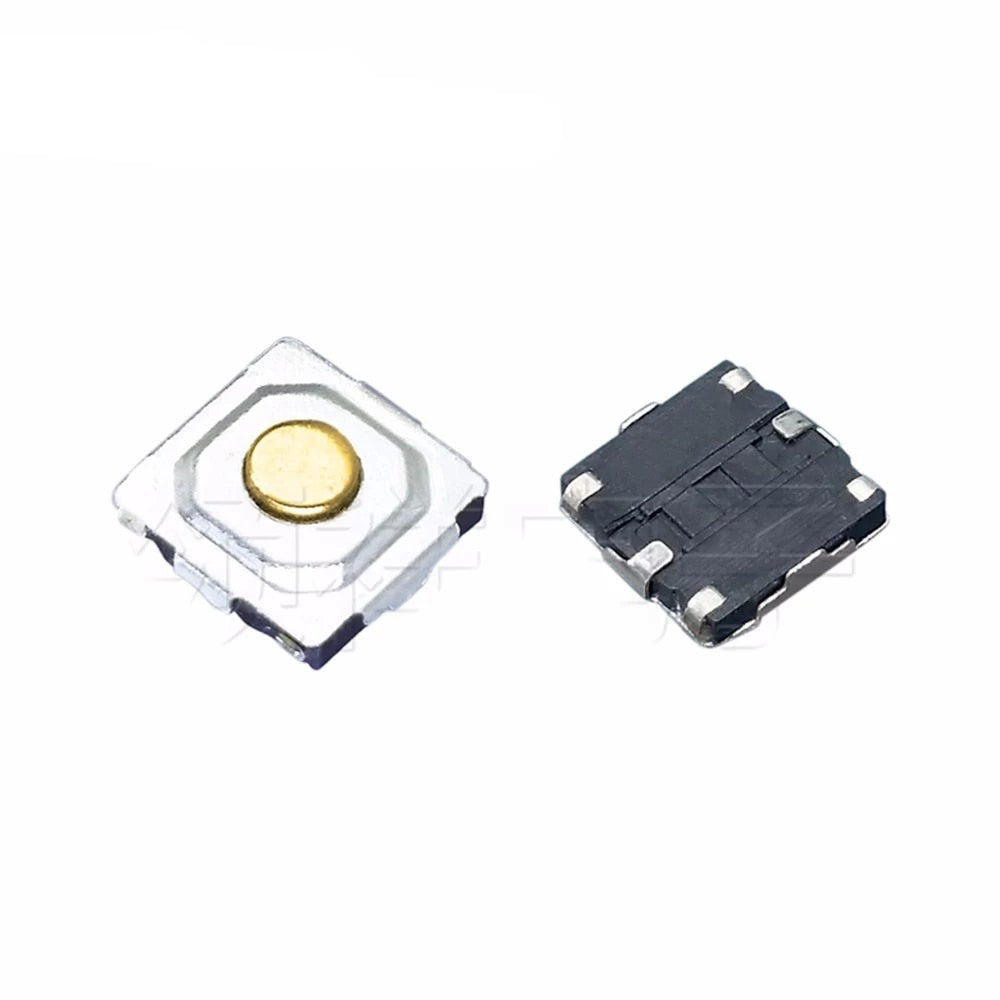

Normally Closed Metal Push Button PCB Tact Switch
Basic Information
|
P/N |
 KAN0546 |
|

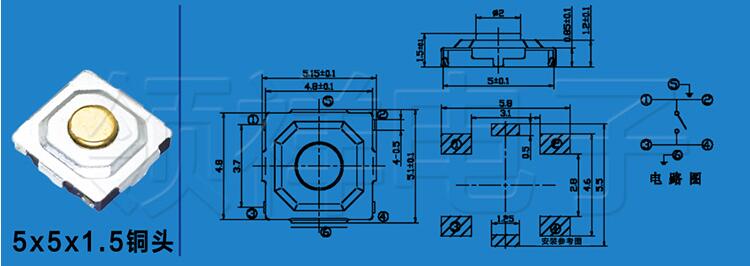

Dimension |
5.2*5.2*1.5mm |
|
Rating current |
12VDC 50mA |
|
Operating force |
100gf, 160gf, 260gf(at customers request) |
|
Life cycles |
100,000/ 200,000/ 500,000/ 1,000,000 cycles |
|
Travel |
0.25±0.1mm |
