Specifications

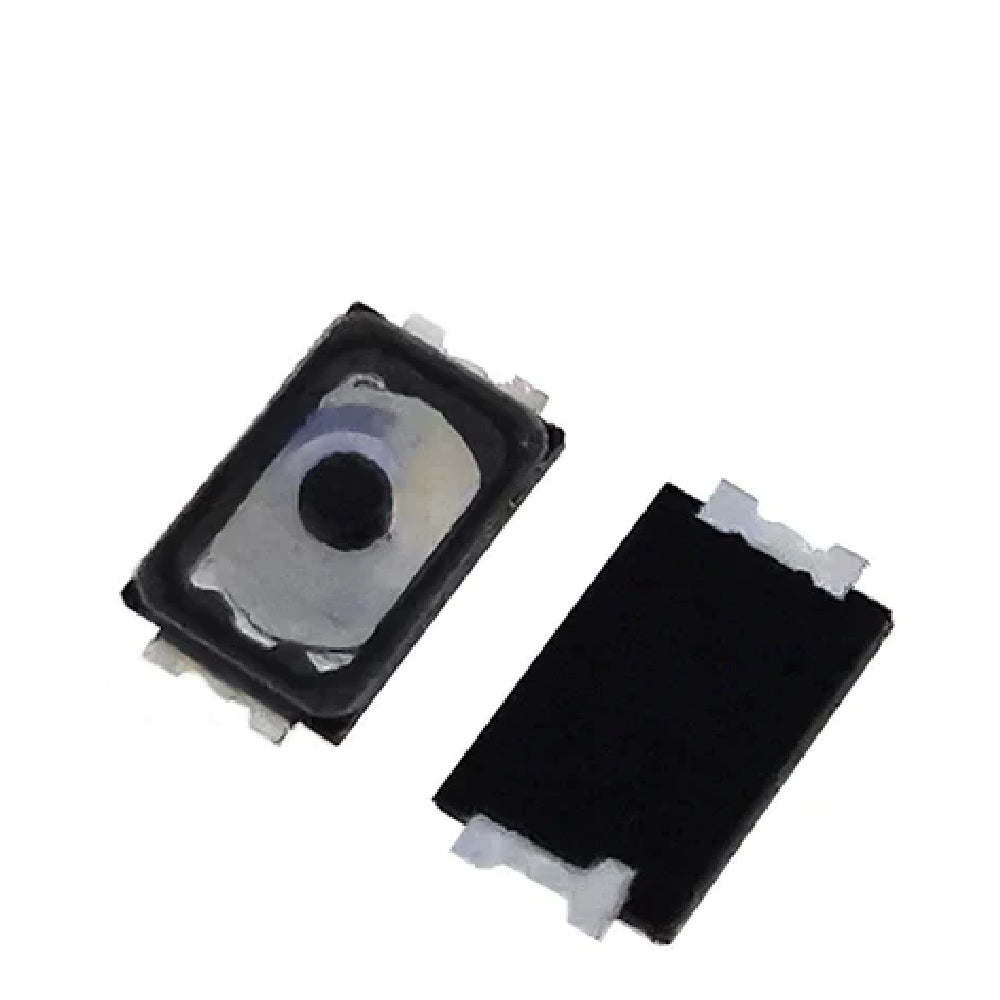

Ultra thin tact switch miniature Waterproof Tact switch SMD with cover
Basic Information
| Number | KAN2341 |
| Contact Rating | Ratings: DC 12V  50mA(Max)    DC 1V  10μA (Min) |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥100MΩ |
| Operating Force | 100gf/160gf/260gf±50gf |
| Operation life | 100,000 cycles |
| 1,000,000cycles | |
| Height | 4.3mm~21mm |
| Sulfuration resistance | 40±2℃, 72h |
