Description
Specifications
Product model: KAN0654

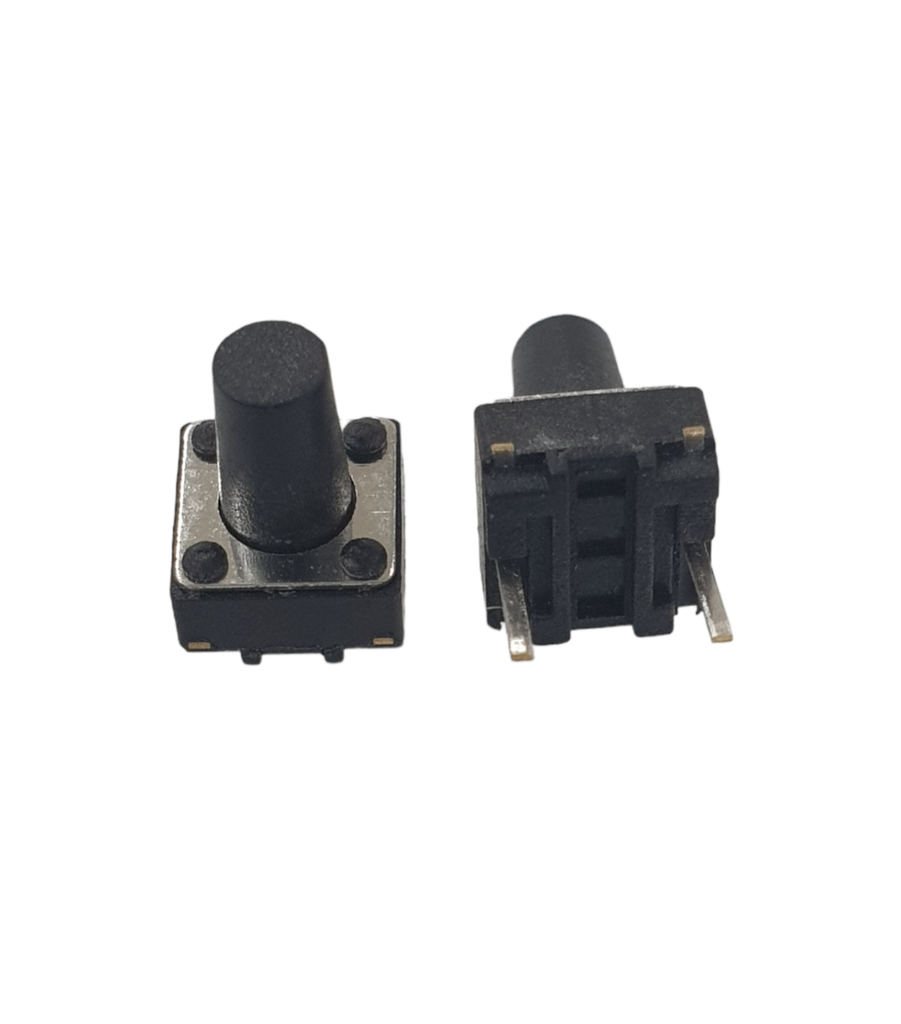

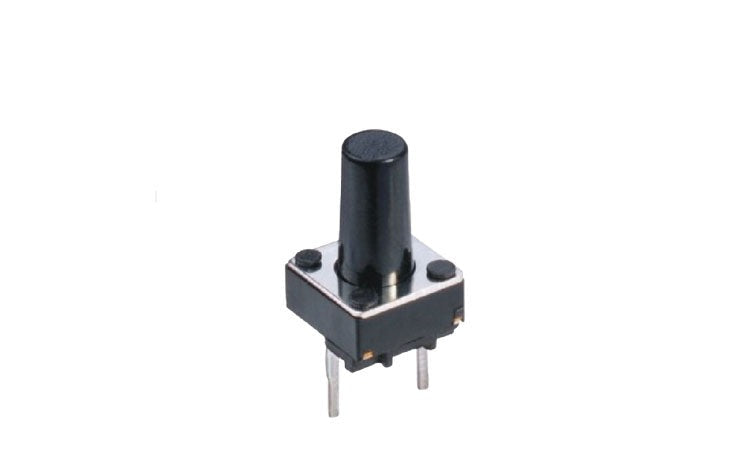

Product name: DIP tact switch

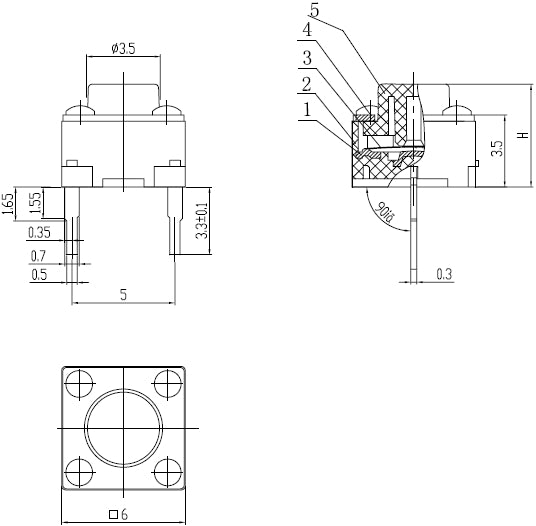

Product specifications: 6×6×H/H=4.3mm-17mm
Product strength: 100gf/160gf/260gf
Product life: 100,000 times
| Operating temperature | -20℃to+70℃ |
| rated current | 50mA.12V DC |
| Insulation resistance | 100mΩ min.100V DC |
| Dielectric strength | 250V AC for 1 min |
| Contact resistance | 100 mΩ max |
| Switch travel | 0.25±0.1mm |
| high |
4.3/4.5/5.5/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/ 11.5/12/12.5/13/13.5/14/14.5/15/15.5/16/16.5/17mm |
| press force | 100gf/160gf/260gf |
