Specifications

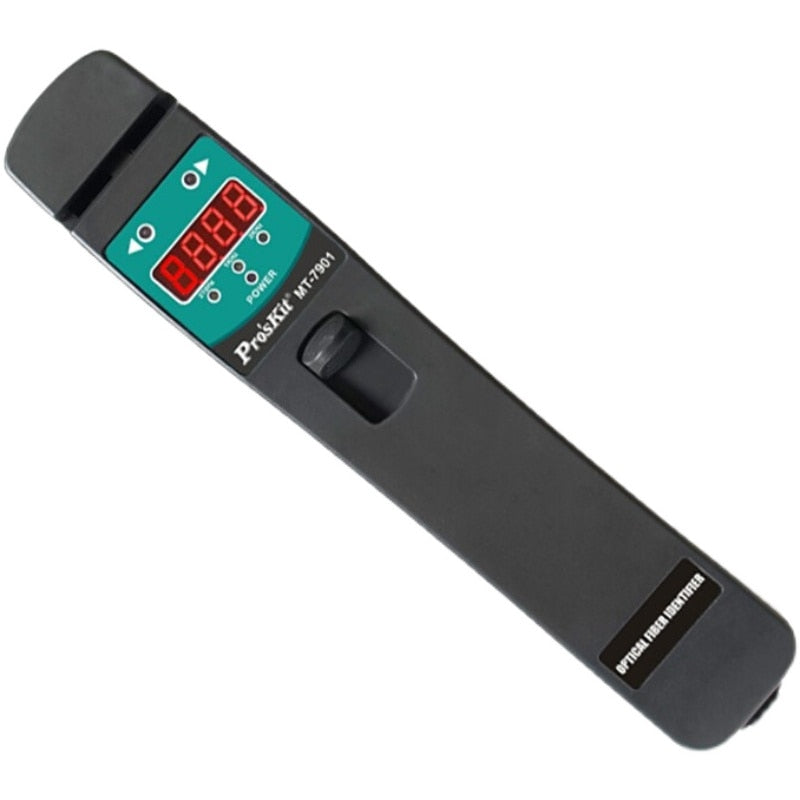

Proskit MT-7901 optical fiber identifier can perform live fiber identification and detection without no damage to fibers, MT-7901 can detect optical signals without disrupting traffic.
Product Details
- Support to detect optical signals without disrupting traffic;Based on non-destructive technology.
- Indicate the signal direction in fiber.
- Detect a variety of optical tones,270Hz, 1kHz and 2kHz.
- Suitable for 0.25, 0.9, 2.0, 3.0mm fiber, and no need to replace the clamp block, more convenient than others.
Specification
| Brand | Proskit |
| Model | MT-7901 |
| Sensitivity |
250um fiber@1550nm=-35dBm 900um fiber@1550nm=-35dBm 2.5mmmm fiber@1550nm=-30dBm |
| Max. Input | +5dBm |
| Wave Respond | 800nm~1700nm |
| Clamp Loss | <2.5db Typical |
| Power Supply | AA Alkaline Cell or Ni-Mh Cell |
| Frequency Identify | 270Hz/1KHz/2KHz |
| Fiber Type | Dia. 250um/900um/2.5mm/3mm SM fiber |
| Fiber Press | <100KPSI |
| Auto Power Off | Yes |
