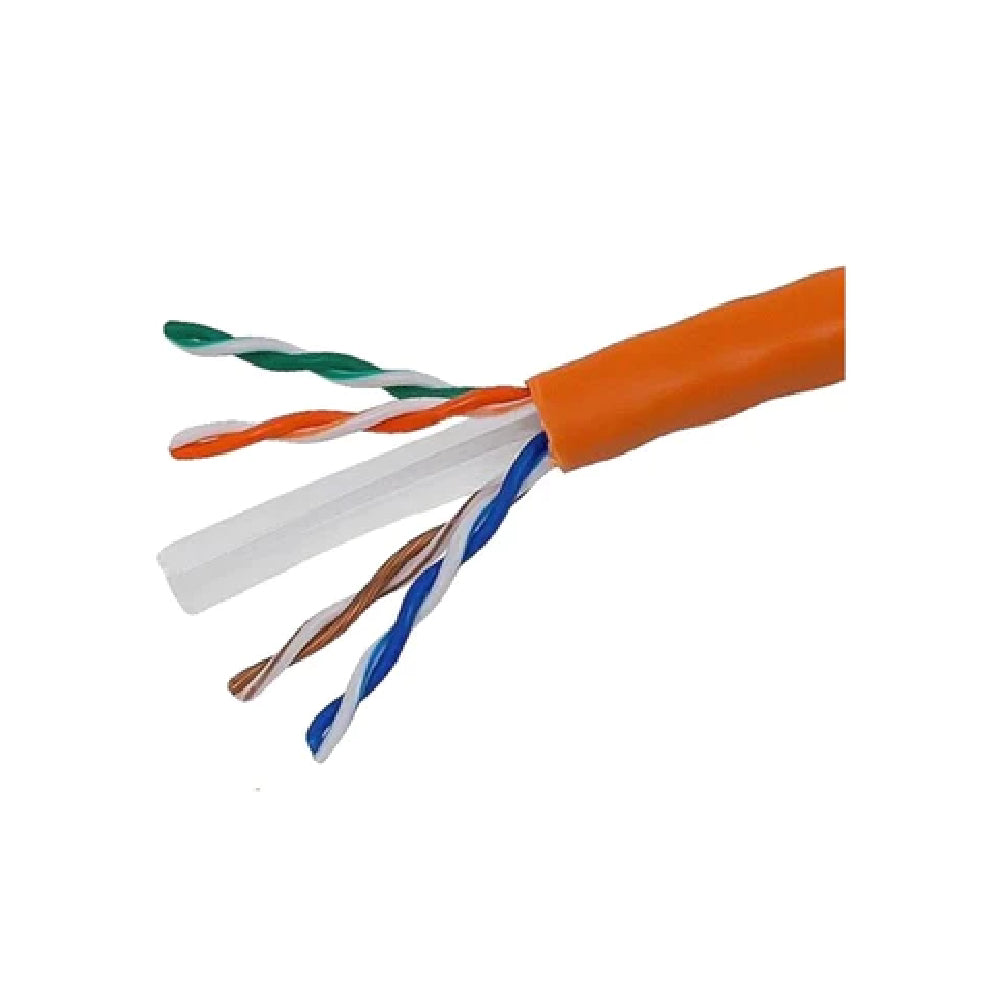

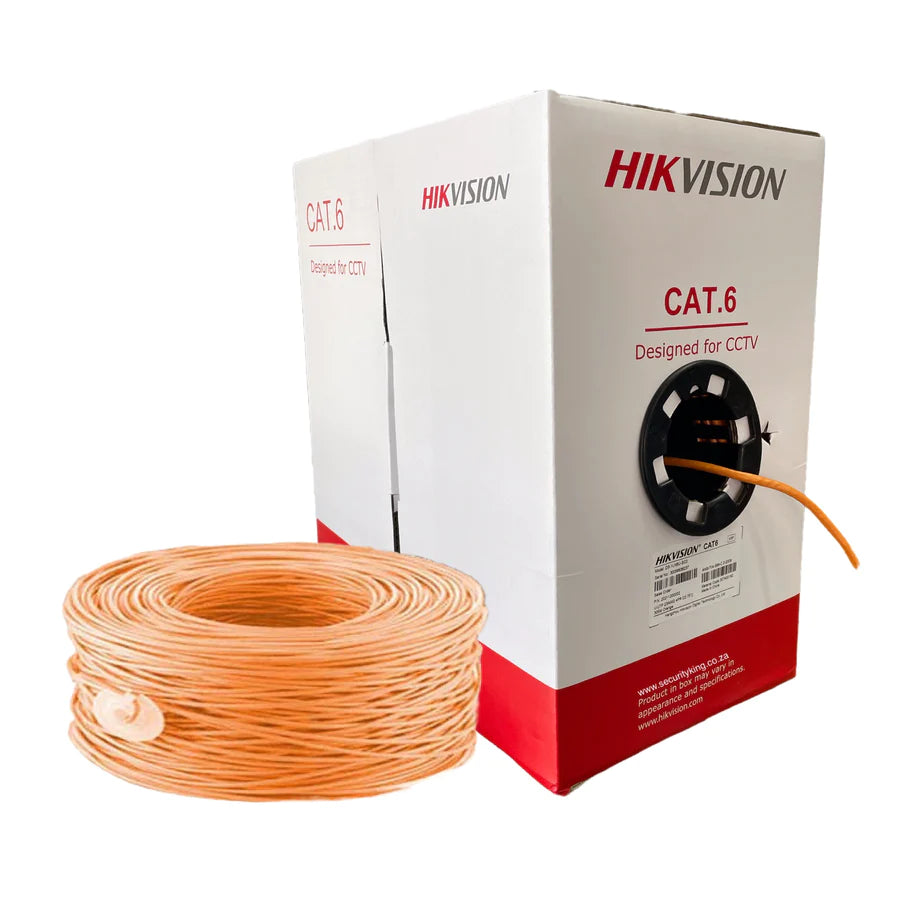

![[83414] Hikvision 305m CAT6 UTP Network Cable Image](/web/image/product.image/9871/image_1024/%5B83414%5D%20Hikvision%20305m%20CAT6%20UTP%20Network%20Cable%20Image%20?unique=d374c60)
![[83414] Hikvision 305m CAT6 UTP Network Cable Image](/web/image/product.image/9871/image_128/%5B83414%5D%20Hikvision%20305m%20CAT6%20UTP%20Network%20Cable%20Image%20?unique=d374c60)
Description
Specifications
| Specification | Details |
|---|
| Model | DS-1LN6U-SC0 |
| Product Type | Network Cable |
| Cable Category | Cat6 |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Conductor Material | Solid Copper |
| Conductor Diameter | 23 AWG |
| Number of Conductors | 8 (4 pairs) |
| Insulation Material | HDPE |
| Jacket Material | PVC |
| Jacket Color | Gray |
| Transmission Bandwidth | Up to 250 MHz |
| Transmission Speed | Up to 1 Gbps |
| Characteristic Impedance | 100 Ω ± 15 |
| Installation Type | Indoor |
| Flame Retardant Rating | CM |
| Cable Length per Box | 305 m (1000 ft) |
| Application | Network transmission, IP cameras, NVR/DVR systems |
| Operating Temperature | -20 °C to 60 °C |
| Storage Temperature | -20 °C to 75 °C |
| Package Type | Pull box |
