Description
Specifications
| Specification | Details |
|---|---|
| Model | DS‑KD‑ACF3/S |

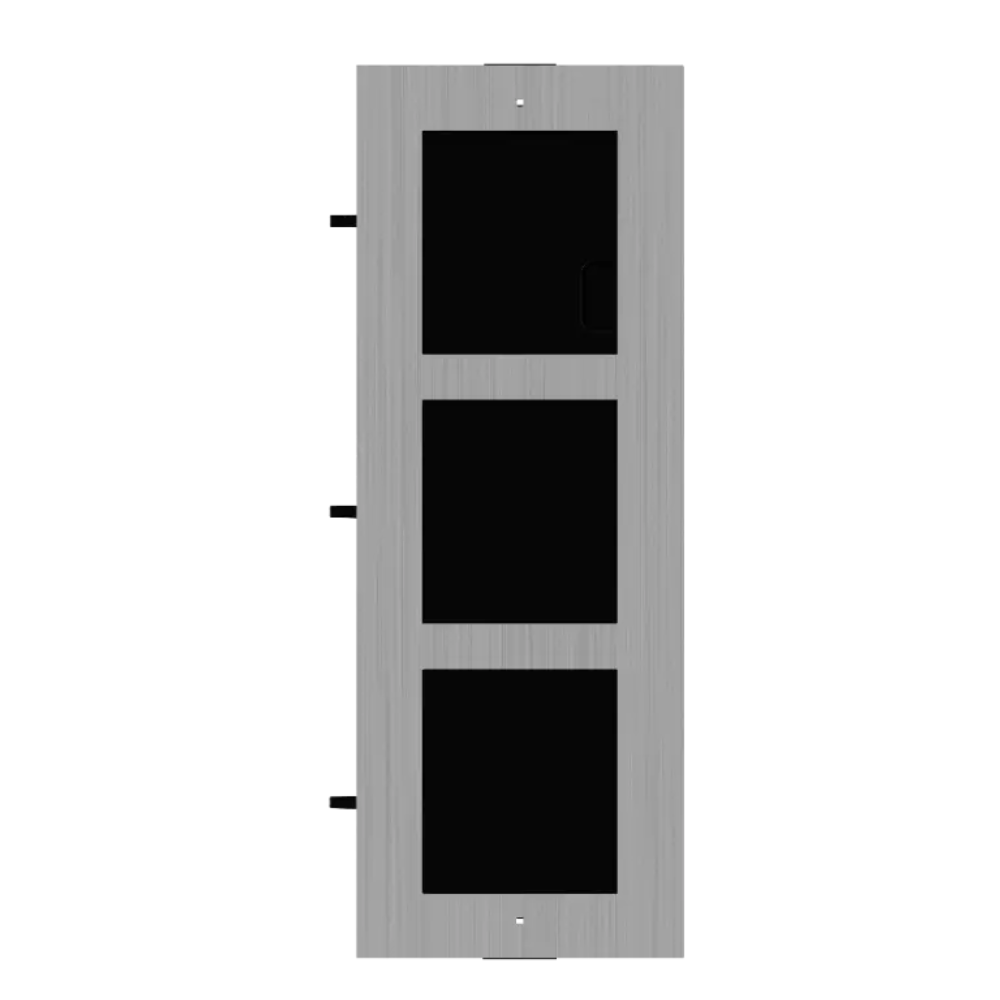

| Product Type | 3‑module flush mounting bracket / front panel for modular video intercom stations |
| Material | Cover: Stainless steel Gang Box: Plastic |
| Working Temperature | -40 °C to +55 °C (-40 °F to 131 °F) |
| Working Humidity | 10% to 95% |
| Cover Dimension (W × H × D) | 337.8 × 124 × 11.5 mm (13.3″ × 4.88″ × 0.45″) |
| Gang Box Dimension (W × H × D) | 320.8 × 107 × 45 mm (12.63″ × 4.21″ × 1.77″) |
| Compatibility | 2nd‑generation Hikvision modular intercom modules (up to 3 modules) |
| Mounting Type | Flush / recessed mounting |
| Includes | Cover plate, flush gang box, screws, module wiring |
