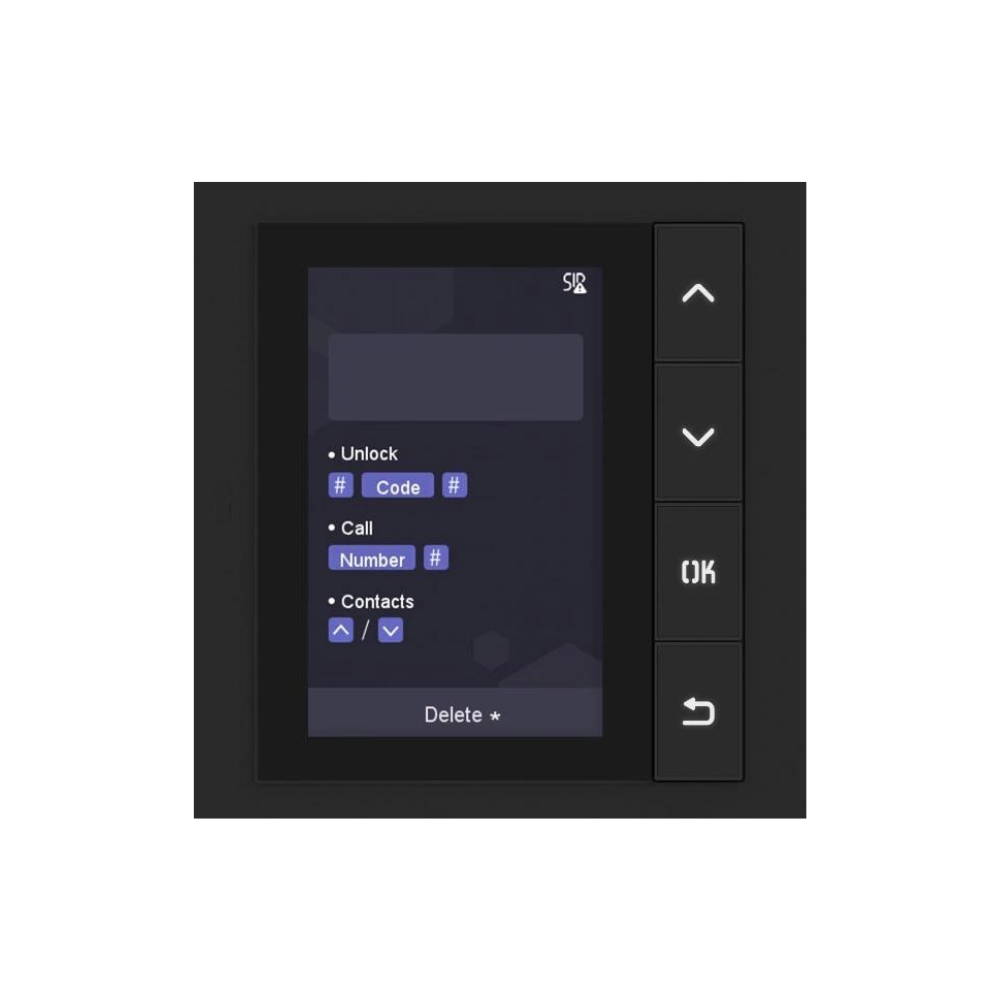

![[83404] Hikvision Display module KD8 Series Pro Modular Door Station Image](/web/image/product.image/7004/image_1024/%5B83404%5D%20Hikvision%20Display%20module%20KD8%20Series%20Pro%20Modular%20Door%20Station%20Image%20?unique=cd8e400)
![[83404] Hikvision Display module KD8 Series Pro Modular Door Station Image](/web/image/product.image/7004/image_128/%5B83404%5D%20Hikvision%20Display%20module%20KD8%20Series%20Pro%20Modular%20Door%20Station%20Image%20?unique=cd8e400)
Specifications
| Compatibility: | DS-KD8003-IME1, DS-KD8003-IME2 |
| Display: | 3.5 " TFT LCD, 320 x 480 px |
| Main features: | You can add up to 500 contacts to the device Calling the indoor station from the contacts list displayed on the device Displaying the number of the indoor station entered using the DS-KD-KP keypad module Displaying information about the duration of a call, opening the door, entering the door station into the mode of recording messages after a missed call Illuminated buttons - 4 pcs RS-485 interface |
| Power supply: | Supplied by DS-KD8003-IME1 or DS-KD8003-IME2 |
| Power consumption: | ≤ 3 W |
| Permissible relative humidity: | 10 ... 95 % (non-condensing) |
| "Index of Protection": | IP65 |
| Housing: | Plastic |
| Color: | Black |
| Operation temp: | -20 °C ... 60 °C |
| Weight: | 0.24 kg |
| Dimensions: | 100 x 98 x 34 mm |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 305301210 |
