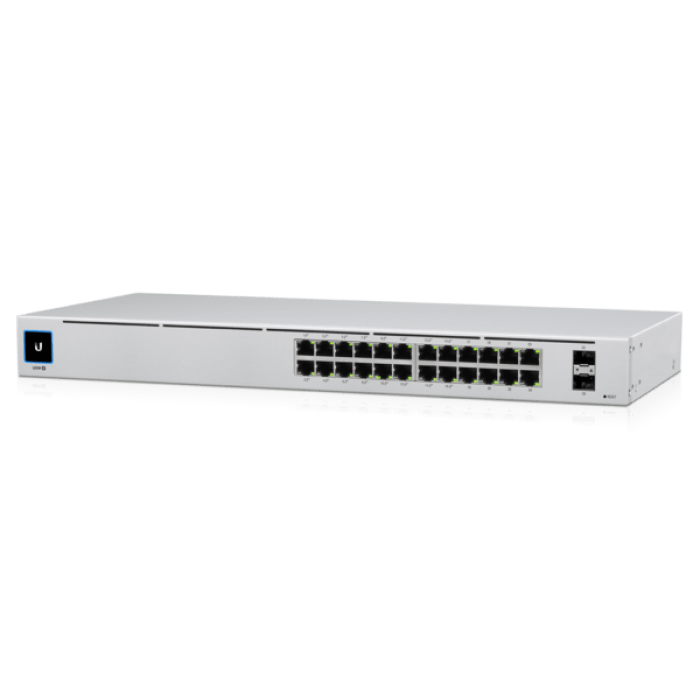

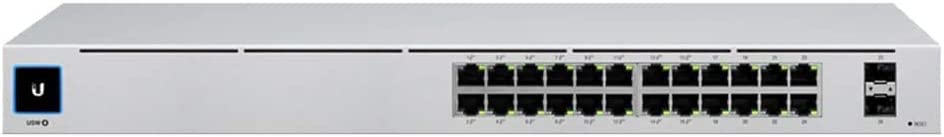

UBIQUITI 24 Port Gigabit PoE Switch Gen2

https://live-linkserve.odoo.com/web/image/product.template/59779/image_1920?unique=0f24829
(0 review)

UBIQUITI 24 Port Gigabit PoE Switch Gen2

15,120.00 MVR 15120.0 MVR 15,120.00 MVR GST Included

14,000.00 MVR GST Included

Not Available For Sale

    This combination does not exist.

    ADD TO CART ADD TO QUOTE
    BUY NOW
    Contact Us

    Terms and Conditions

    Specifications

    USW-24-POE (unifi switch gen2) is a configurable Gigabit Layer 2 switch with 24 ports Gigabit Ethernet, including 16 ports for automatic 802.3at PoE+ detection and two SFP ports. Provides Gigabit PoE links to RJ45 Ethernet devices and Gigabit fiber uplink options to the enterprise network. The USW-24-POE is equipped with a 1.3-inch LCM touch screen module that provides status information. With a 7.9" depth, the compact, fanless design can be easily installed in a SOHO rack.

    Product Details

    Manage and configure via the UniFi network controller: Managed and configured by a UniFi network controller with support for UniFi mobile applications, USW-24-POE offers a wide package of advanced protocols and Layer 2 switching functions, including switching, mirroring or aggregate mode to port. The UniFi network controller and mobile application allow administrators to configure and monitor virtually all switch functions in the graphical user interface from anywhere.

    Now much more than Wi-Fi: UniFi is rapidly growing to a full SDN (Software-Defined Networking) solution with seamless integration of high-performance switching

    Features:

    • (1) 1.3" LCM color touchscreen with AR switch management
    • (16) GbE, PoE+ RJ45 ports
    • (8) GbE RJ45 ports
    • (2) 1G SFP ports
    • 95W total PoE supply
    • Fanless, silent cooling

    Specification

    Product code USW-24-POE
    Dimensions 424,4 x 200 x 43,7 mm
    (16.71 x 7.87 x 1.72 ")
    Weight 3.00 kg
    Interfaces Network management 24x Ports 10/100/1000 RJ45 Ethernet
    2x Ports 1G SFP Ethernet
    Power supply method 100-240 V AC / 50-60 Hz, universal input
    Power supply AC/DC, internal, 120 W.
    Supported voltage range 100 to 240 V AC
    Max. Power consumption (no PoE output) 25 W.
    ESD / EMP protection Air: ± 16 kV, Contact: ± 12 kV
    Shocks and vibrations ETSI300-019-1.4 Standard
    Operating temperature From -5 to 40 ° C
    Operating moisture 10 to 90% non-condensing
    Certificates CE, FCC, IC
    PoE Interfaces Ports 1-16 POE + IEEE 802.3af / at (pins 1, 2+; 3, 6-)
    SFP 2x sfp
    Max. PoE power per port according to PSE 802.3at 32 W.
    Voltage range 802.3af mode 44–57 V.
    Voltage range 802.3at mode 50–57 V.
