Specifications
Product Description

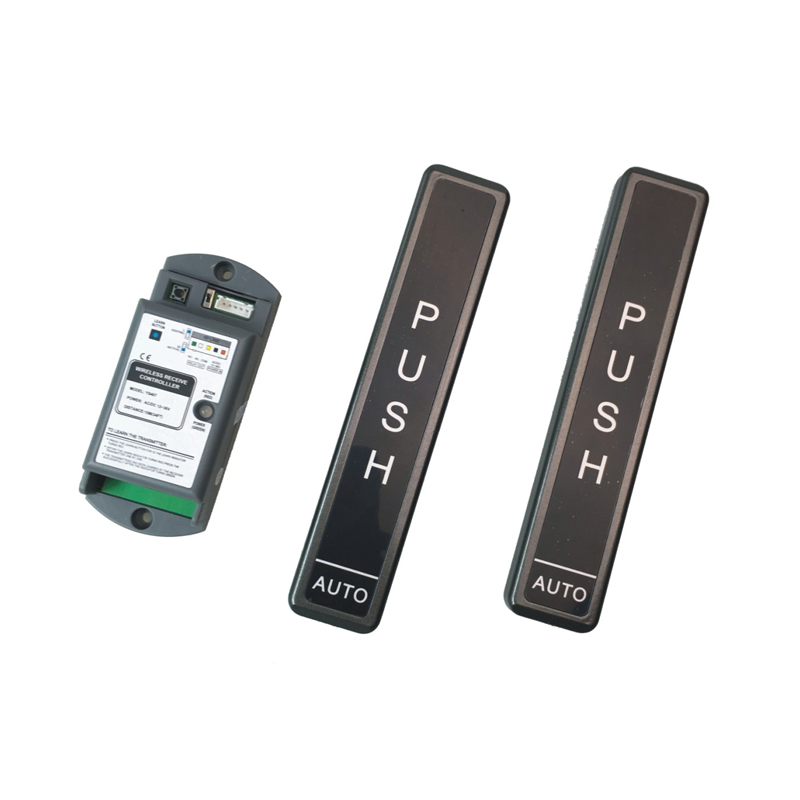

Automatic Door Push Button Switches
ADOPT uniformity frequency, high stability of wireless signal receiving and sending
Stultification of PU varnished shell, dapper appearance with anti-off screw
Operation frequency 433M
Panel Pushing with Low-power consumption, long service life battery
Three point of trigger pressing design to ensure the effective action.
With large capacity output, available to be used with auto door, electric lock and access controller
Door open within 2s when signal received.
Wide voltage input of AC/DC 12-36V
Function switch with voice indicator,power indicator turns green to confirm the validity of operation.
Technical Parameter
ADOPT uniformity frequency, high stability of wireless signal receiving and sending
Stultification of PU varnished shell, dapper appearance with anti-off screw
Operation frequency 433M
Panel Pushing with Low-power consumption, long service life battery
Three point of trigger pressing design to ensure the effective action.
With large capacity output, available to be used with auto door, electric lock and access controller
Door open within 2s when signal received.
Wide voltage input of AC/DC 12-36V
Function switch with voice indicator,power indicator turns green to confirm the validity of operation.
Technical Parameter
|
Item Name
|
Automatic Door Push Button Switches
|
|
Wireless Receiver
|
|
|
Power supply:
|
|
|
Static Current:
|
15mA
|
|
Action Current:
|
80mA (DC 12V Power)
|
|
Relay contact capacity:
|
20A 14VDC
|
|
Wireless Transmitter
|
|
|
Power supply:
|
6V(2/pcs 3V battery)
|
|
Emission Current:
|
3.9mA
|
|
Life of Battery:
|
more than 20000 timesÂ
|
|
Transmit distance:
|
more than 25M
|
|
Operation Temperature:
|
-42℃~45℃
|
|
Operation Humidity:
|
10~90%RH
|
|
Dimension:
|
203mm(L)×41mm（W）×12.5mm(H) (Transmitter)
123mm(L)×50mm (W) ×32mm(H) (Wireless receiver) |
