Specifications

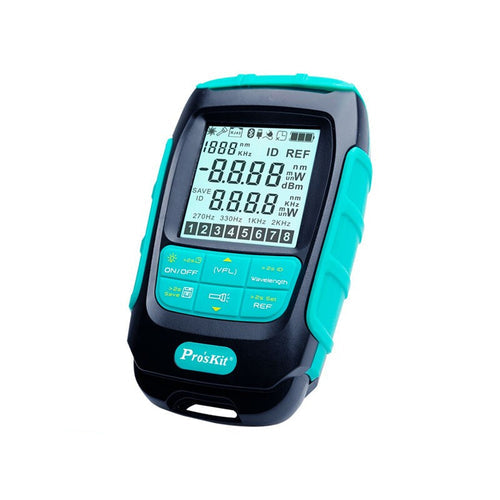

4 in 1, including Power Meter, Lan Cable Tester, Visual Fault Locator & LED Flashlight.
Power Meter:
Supports 8 wavelength, 850/980/1300/1310/1490/1550/1625/1650nm.
Measurement units:Â dB, dBm, nW, mW & uW.
Other Functions: Wave ID function, wavelength memory, self-calibration & REF value setting.
Lan Cable Tester:
Pin to Pin cable map indicator.
Max. measuring length 600m.
Visual Fault Locator:
Easy to locate the breakpoint & bad connections in fiber optic cables.
Both continuous and flashing modes available.
LED Flashlight:
Supports extra illumination in dark working condition.
More Functions:
30mW output power.
Equipped with 3.7V/450mAh Li-ion battery, working hours > 50 hours (only OPM).
Micro USB rechargeable design.
Supports 500 data storage.
4 IN 1
| Power Meter |
850/980/1300/1310/1490/1550/1625nm Measurements in dB, dBm, nW, mW & uW |
| Cable Tester | Max. length 600m |
| Visual Fault Locator | Continuous & flashing modes |
| LED Flashlight | Dark area support |
