Specifications

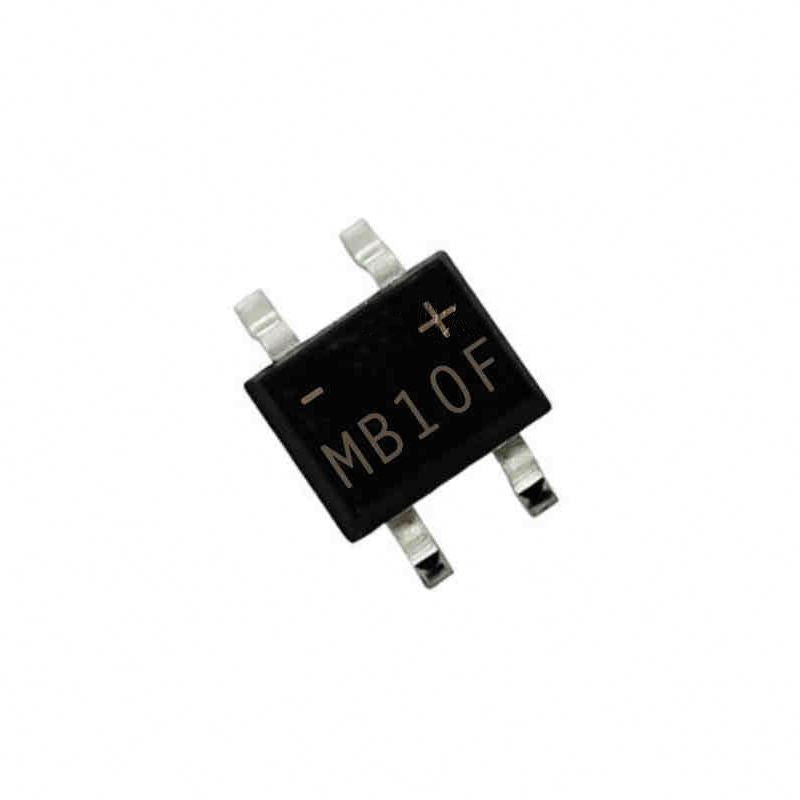

| Part Number | MB10F |
| Function | Single-phase bridge rectifier (AC to DC conversion) |
| Package Type | SMD (Surface-Mount Device), SOP-4 / MBF case |
| Max Peak Reverse Voltage | 1000V |
| Average Output Current | 0.8A (some manufacturers list 1.0A) |
| Max Forward Voltage | 1.1V @ 800mA |
| Surge Overload Rating | 30A to 35A Peak |
| Operating Temperature | -55°C to +150°C |
| Construction | Glass Passivated Die |
