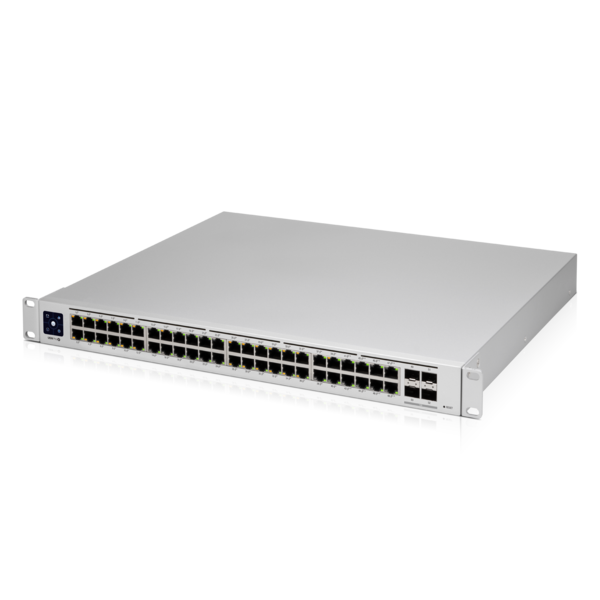

Ubiquiti Unifi 48 port switch with (40) 802.3at PoE+ ports, (8) 802.3bt PoE++ ports, and (4) 10 GB SFP+ ports. Powerful second-generation UniFi switching.
Ubiquiti Unifi 48 port switch with (40) 802.3at PoE+ ports, (8) 802.3bt PoE++ ports, and (4) 10 GB SFP+ ports. Powerful second-generation UniFi switching.
Description
Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72") |
| Weight With Brackets |
6.25 kg (13.78 lb) 6.34 kg (13.98 lb) |
| Interfaces Networking Management |
(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Total Non‑Blocking Throughput | 88 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.944 Mpps |
| Power Method Universal Input USP RPS DC Input |
100-240VAC/50-60 Hz 52VDC, 11.54A; 11.5VDC, 5.22A |
| Power Supply | AC/DC, Internal, 120W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 60W |
| LEDs System RJ45 Data Ports SFP+ Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 600W |
| PoE Interfaces Ports 1-40 Ports 41-48 |
POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt |
32W 64W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
