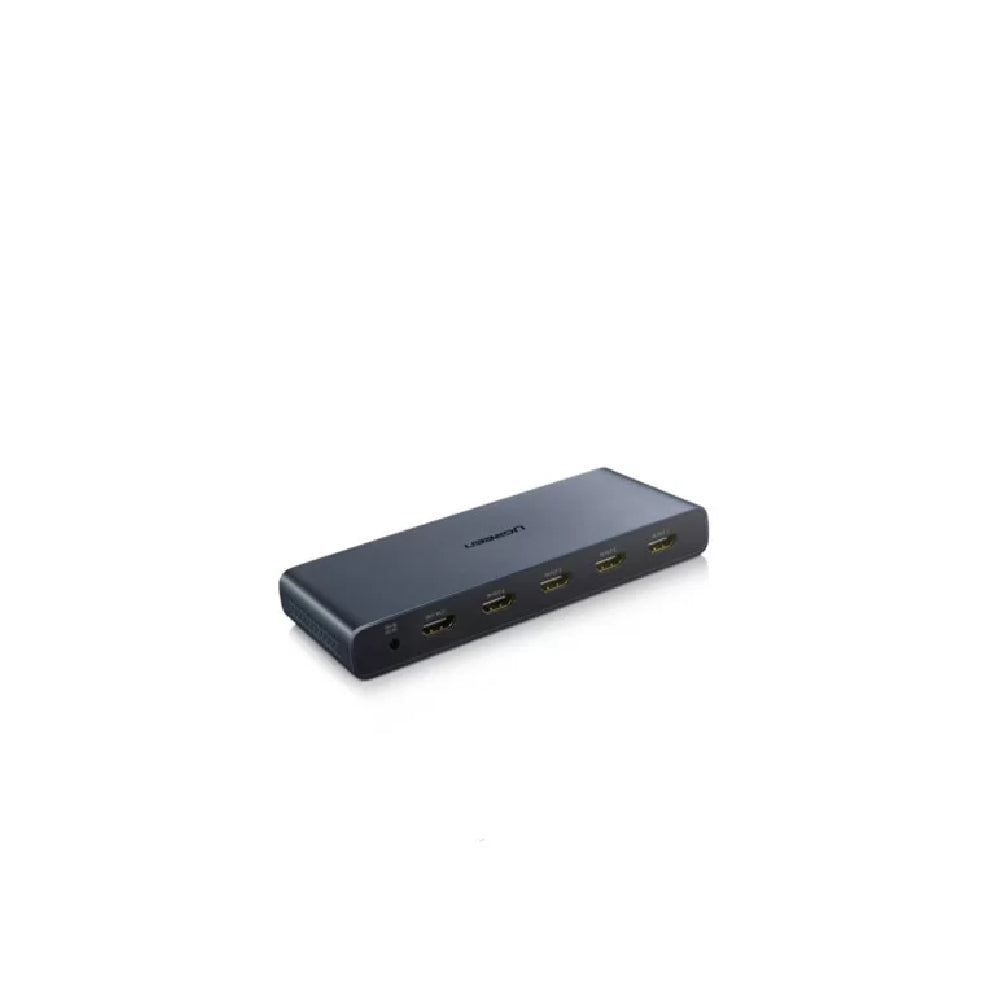

- Ugreen 50745 HDMI 4-in-1 signal mixer can project 4 high-definition HDMI digital video signals on the same screen and a series of videos, and perform the slideshow seamlessly. profane.
- Ugreen 50745 HDMI 4 in 1 aggregator can be controlled by buttons on the control panel or controlled by infrared IR signal via remote. No complicated setup, easy connection, very convenient for conference presentations, meeting presentations and entertainment
- The HDMI 4 aggregator outputs 1 display 4 image signals at a time on 1 screen ie the screen will be divided into 4 small frames showing 4 HDMI inputs at the same time.
- Input: 4 HDMI Input ports
- Output: 1 HDMI Output port
- Supports resolutions up to 1920x1080P / 60Hz
- Compatibility with 720P; - Support selecting audio output port by key
- Support input and output using 16m HDMI cable
- Support audio output formats PCM2, 5.1CH, 7.1CH, Dolby5.1, DTS5.1
- Support input resolution 1080P / 1080i / 720P / 720i / 576P / 576i / 480P / 480i,
- Support HDCP version 1.2
- Support full screen mode, picture mode, dual screen mode medium and medium screen 4 mode. - DC 5V / 2A power
- Product dimensions: L164.5 x W69 x H19.5 (mm)
