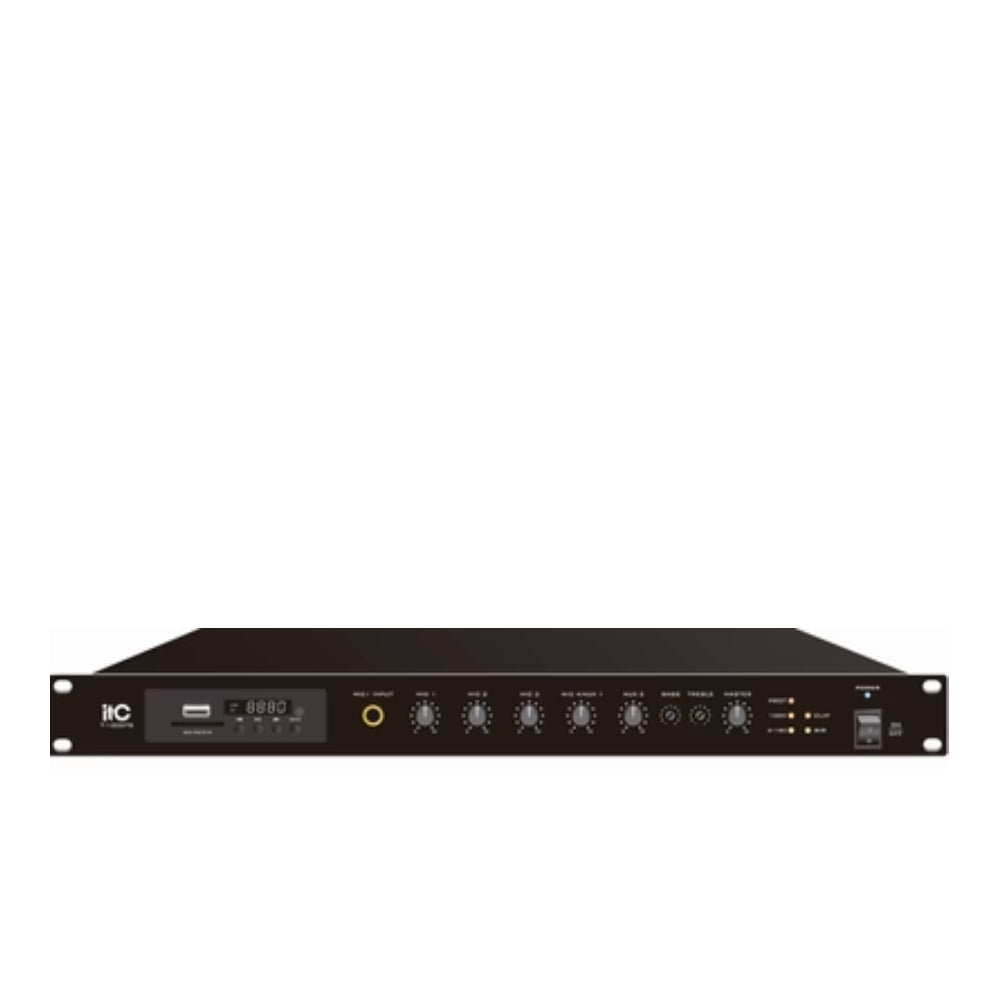

RMS240W Class D Mixer Amplifier with MP3(USB/SD)/TUNER and bluetooth,built in MIC1 & Line 1 input recorder function, 1EMC input,2AUX input, 4 Phonejack MIC input (1U, Rack mount), with 100V & 4-16O output
RMS240W Class D Mixer Amplifier with MP3(USB/SD)/TUNER and bluetooth,built in MIC1 & Line 1 input recorder function, 1EMC input,2AUX input, 4 Phonejack MIC input (1U, Rack mount), with 100V & 4-16O output
Description
Specifications
Model |
T-60DTB |
T-120DTB |
T-240DTB |
T-350DTB |
T-500DTB |
T-650DTB |
|
Output |
4-16Ω, 100V |
|||||
|
RMS Power |
60W |
120W |
240W |
350W |
500W |
650W |
|
Input Sensitivity And Impedance |
MIC1,2,3,4 input: 5mV / 600Ω unbalanced 6.3 connection terminal; |
|||||
|
AUX1,2 input: 350mV / 10KΩ unbalanced RCA connection terminal; |
||||||
|
EMC input: 775mv / 10KΩ unbalanced 6.3 connection terminal |
||||||
|
Output Sensitivity & Source Impedance |
MIX OUT: 1000mV / 470Ω unbalanced RCA connection terminal |
|||||
|
Tone |
Bass: ± 10dB at 100Hz; |
|||||
|
Treble: ± 10dB at 10KHz |
||||||
|
Frequency Response |
50Hz ~16KHz (+ 1dB, -3dB) |
|||||
|
SNR |
MIC1,2,3: 66dB; AUX1,2: 80dB |
|||||
|
THD |
< 0.5% (at 1KHz, 1/3 rated power) |
|||||
|
Mute Function |
MIC 1 is prior to MIC2-4, AUX1-2 audio input; EMC is prior to all audio inputs |
|||||
|
Channel Crosstalk Attenuation |
≥50dB |
|||||
|
Heat Dissipation |
Side-in and rear-out forced fan cooling; fan starts automatically when the device is turned on; infinitely variable speed |
|||||
|
Protection |
Overheat protection, overcurrent protection, short circuit protection |
|||||
|
Power Supply |
~ 220 -240V/ 50Hz |
|||||
|
Power Consumption |
40W |
50W |
80W |
100W |
110W |
850W |
|
Dimension |
484 ×300 × 44mm |
|||||
|
Weight |
3.5Kg |
3.7Kg |
3.8Kg |
4.0Kg |
4.1Kg |
4.3 |
