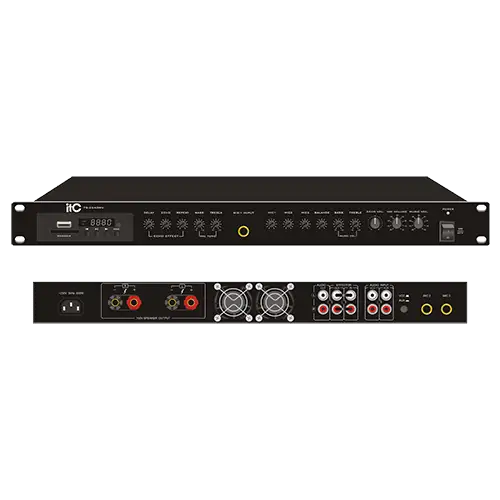

2*120W Multi-media professional Amplifier @100V,with SD/USB interface MP3 player, bluetooth, MP3 recording & echo function

Rated Power Output





2x120W





Constant Pressure Output





100V





Input Sensitivity And Impedance





MIC1/2/3: ±5mV/600Ω (Unbalanced input); AUX: 350mV/10KΩ, (Unbalanced input)





VCD: 350mV/10KΩ, (Unbalanced input); EFFECTOR IN:350mV10KΩ, (Unbalanced input)





Front Output





EFFECTOR OUT: 350mV470Ω; AUDIO OUT: 1V±50mV/470Ω





Microphone Tone





low-frequency: ±10dB at 100Hz,high frequency: ±10dB at  10KHz





Music Tone





low-frequency: ±10dB at 100Hz,high frequency: ±10dB at  10KHz





Effectors Parameters





DELAY: 80ms-240ms; ECHO : 1-12, REPEAT: 0.1s-2s





Frequency Response





AUX,VCD: 20Hz(±3dB) -- 20KHz(±3dB); MIC: 50Hz(±3dB) -- 16kHz(±3dB)





Noise-signal Ratio





Mic :≥65dB, music: ≥70dB





Harmonic Distortion





Distortion of power amplifier on rated output power≤1%





Indicator Light





power light





Cooling-down Method





air-cooled





Guard Mode





Over temperature / short circuit





Supply Voltage





~220-240V  50/60Hz





Dimension





484 x 300 x 44mm





Fuse Size





T3.15A-250V-5x20





Power Consumption





TS-2120WV: 300W
